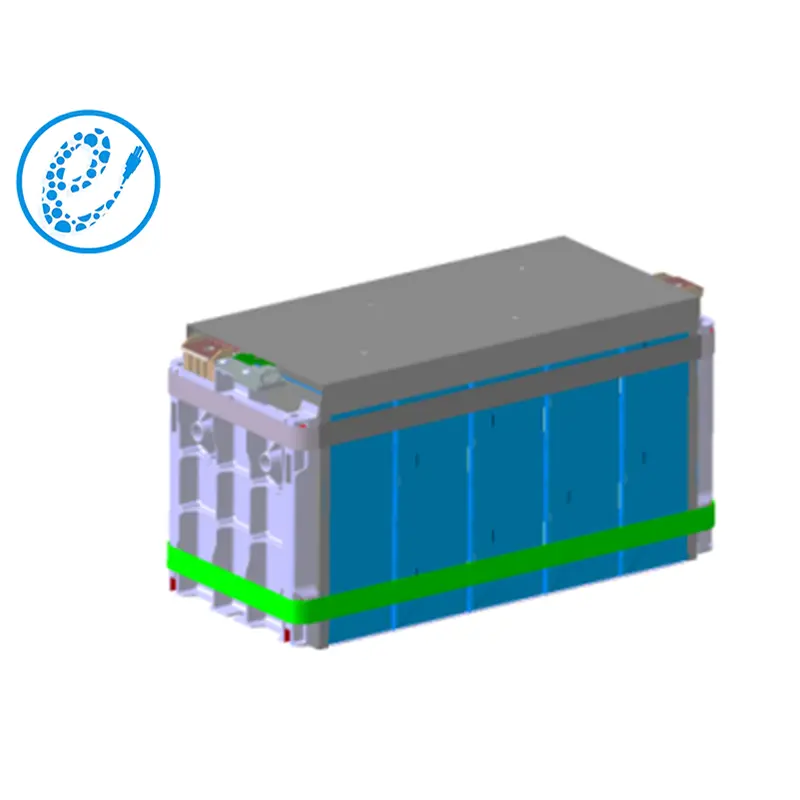

The EcoPowerBattery MS0302-16.1V302A-(302AH1P5S) features a 16.1V voltage rating, 302Ah efficiency rating, and 1P5S configuration. Its 16.1V rated voltage configuration makes it a high-performance, cost-effective lithium-ion battery module, as this higher voltage setting improves efficiency, reduces power loss, and enhances performance when compared to the traditional 12V rated voltage.
| No. | Items | EP-LFP302Ah STANDARD MODULE | Note | |
| MS0302-16.1V302A | ||||
| 302AH1P5S | ||||
| 1 | Nominal voltage(V) | 16.1 | ||
| 2 | Operating voltage(V) | min | 12.5 | T＞0℃ |
| 3 | max | 18.25 | ||
| 4 | Nominal capacity(Ah) | 302 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 4.862 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P5S | ||
| 7 | Maximum continuous charge current（A） | 151 | ||
| 8 | Maximum continuous discharge current（A） | 302 | ||
| 9 | Maximum pulse discharge current（≤180s）（A） | 604 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating film | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension L （mm） | 404.8 | ||
| Dimension B （mm） | 178 | |||
| Dimension H （mm） | 216.2 | |||
