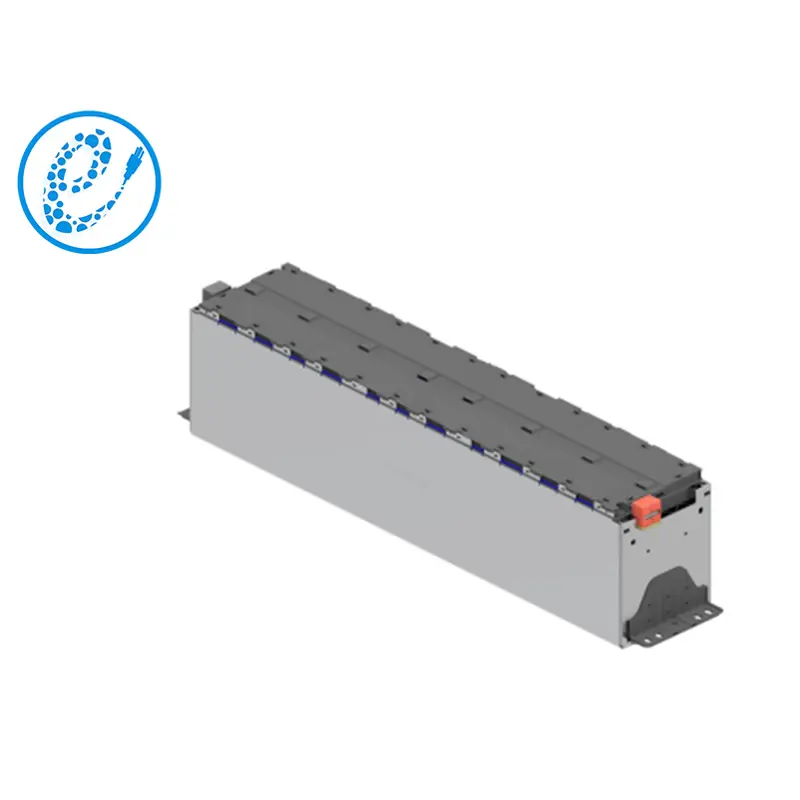

MS0202-35.2V280A- (280AH1P11S) has a capacity of 280Ah and a standard voltage of 35.2V. It uses a module integration method to more accurately monitor the individual information of each battery cell, allowing you to see the condition of the battery cell in real time, and to respond in a timely manner in the event of a malfunction.
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | ||||
| MS0202-19.2V280A | MS0202-25.6V280A | MS0202-35.2V280A | MS0202-38.4V280A | ||||
| 280Ah1P6S | 280AH1P8S | 280AH1P11S | 280AH1P12S | ||||
| 1 | Nominal voltage(V) | 19.2 | 25.6 | 35.2 | 38.4 | ||
| 2 | Operating voltage(V) | min | 15 | 20 | 27.5 | 30 | T＞0℃ |
| 3 | max | 21.9 | 29.2 | 40.15 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 280 | 1/3C，100%DOD | ||||
| 5 | Nominal energy（KWh ） | 5.376 | 7.168 | 9.856 | 10.752 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P6S | 1P8S | 1P11S | 1P12S | ||
| 7 | Maximum continuous charge current（A） | 140 | |||||
| 8 | Maximum continuous discharge current（A） | 280 | |||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 560 | |||||
| 10 | SOC operating range（%） | 10~90 | |||||
| 11 | Insulation requirements(MΩ) | ≥20 | |||||
| 12 | Module cooling method | Natural cooling | |||||
| 13 | Module heating method | NO | Or heating film | ||||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||||
| 15 | Dimension L （mm） | 465 | 608 | 824 | 895 | ||
| Dimension B （mm） | 179 | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | 220 | |||
