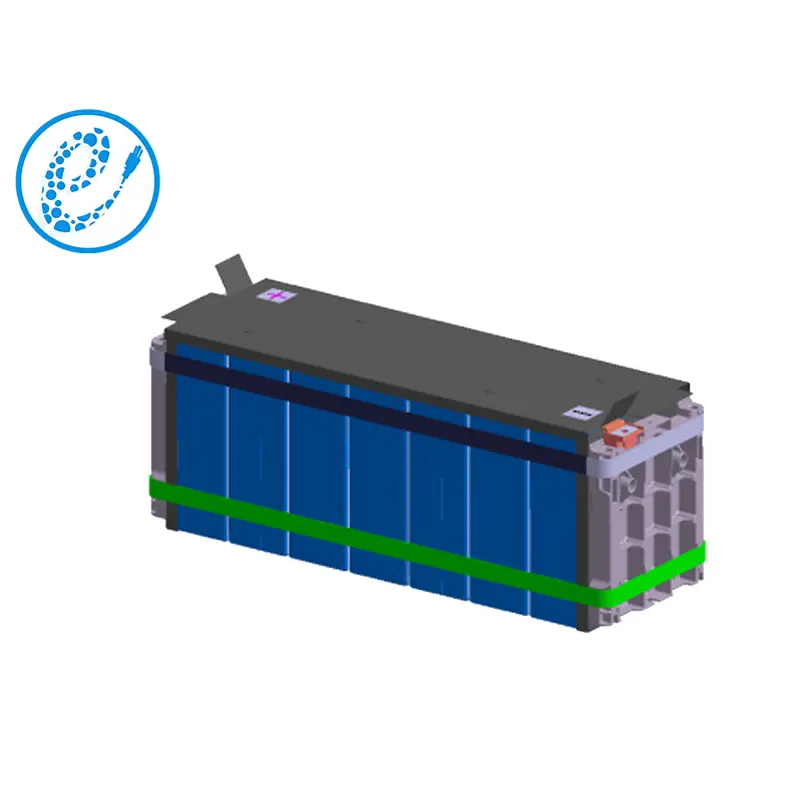

EcoPowerBattery MS0302-25.6V280A-(280AH1P8S) With a capacity of up to 280Ah and a rated voltage of 25.6V, the EcoPowerBattery MS0302-25.6V280A-(280AH1P8S) is capable of delivering plenty of energy for all your needs. Whether you're exploring off-grid living, driving an electric vehicle, or building a backup power system, this battery ensures superior performance.
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | |||
| MS0302-22.4V280A | MS0302-25.6V280A | MS0302-32.0V280A | ||||
| 280AH1P7S | 280AH1P8S | 280AH1P10S | ||||
| 1 | Nominal voltage(V) | 22.4 | 25.6 | 32 | ||
| 2 | Operating voltage(V) | min | 17.5 | 20 | 25 | T＞0℃ |
| 3 | max | 25.55 | 29.2 | 36.5 | ||
| 4 | Nominal capacity(Ah) | 280 | 1/3C，100%DOD | |||
| 5 | Nominal energy（KWh ） | 6.272 | 7.168 | 8.96 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P7S | 1P8S | 1P10S | ||
| 7 | Maximum continuous charge current（A） | 140 | ||||
| 8 | Maximum continuous discharge current（A） | 140 | ||||
| 9 | Maximum pulse discharge current（≤180s）（A） | 280 | ||||
| 10 | SOC operating range（%） | 10~90 | ||||
| 11 | Insulation requirements(MΩ) | ≥20 | ||||
| 12 | Module cooling method | Natural cooling | ||||
| 13 | Module heating film | No | Or heating film | |||
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||
| 15 | Dimension L （mm） | 565.9 | 637.9 | 786.3 | ||
| Dimension B （mm） | 178 | 178 | 178 | |||
| Dimension H （mm） | 214 | 214 | 214 | |||
