C3-LFP104W with high stability, long cycle life and excellent safety characteristics. It is lightweight and compact, making it ideal for use in portable electronics. LiFePO4 battery cell is also environmentally friendly and have a low risk of thermal runaway.
| Item | Specification | |

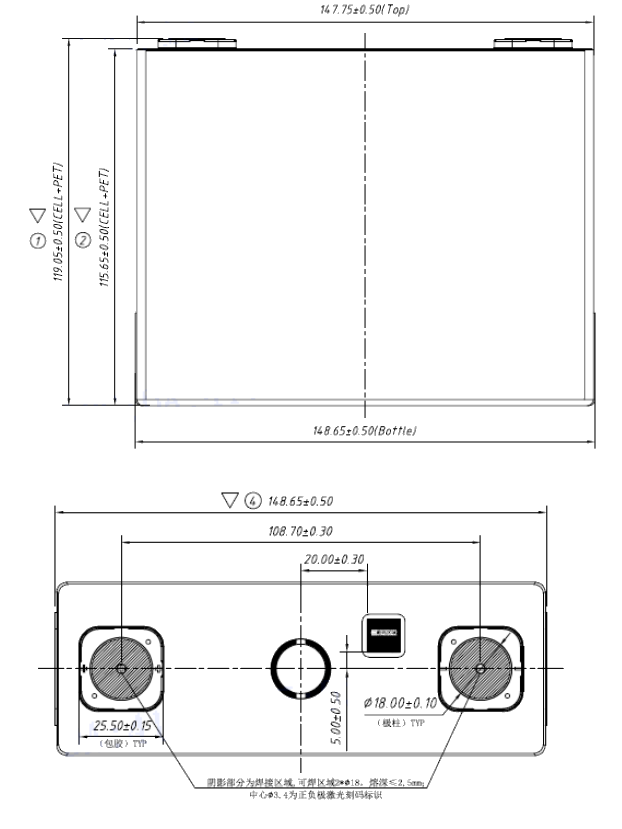

| Dimension | 148.65mm*52.3mm*115.65mm | |
| Weight | 1.90 ± 0.03 kg | |
| Min. capacity | 104Ah (1C) @ 25℃ | |
| Min. energy | 332.8Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.4mΩ （AC） | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.0V （T≤0℃） 2.5V （T＞-0℃） | |
| Current | Maximum continuous charge | 124.8A（1.2C） |
| Maximum continuous discharge | 208A（2C） | |
| Energy density | Gravimetric | 175.15Wh/kg |
| Volumetric | 370.14Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -30 ~ 60℃ | |
| Storage | -20 ~ 55℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
