SS130502-1331.2V300A(300AH1P416S)-Liquid Cooling-DC-400KWh

Name: SS130502-1331.2V300A(300AH1P416S)-Liquid Cooling-DC-400KWh
Brand: Eco Power Group
Rating: 4.4 (5 reviews)

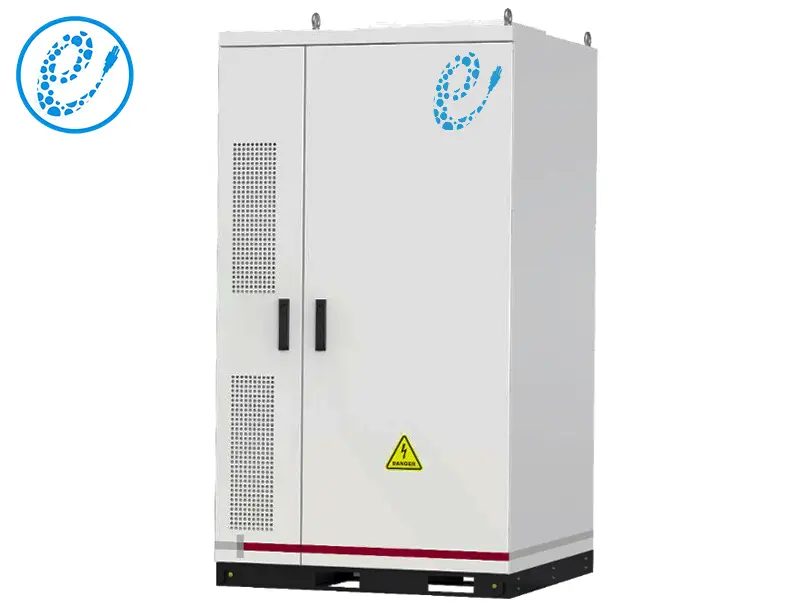

This product comprises of eight 166.4V/300Ah lithium iron phosphate battery packs and one power distribution unit (PDU), which are fixed in series on the cabinet frame.

A 166.4V/300Ah lithium iron phosphate battery pack consists of 52 cells connected in series, BMU, MSD, cabinet, liquid cooling plate, positive and negative connectors, communication connectors, CCS, copper bar, collection harness, and insulation materials.

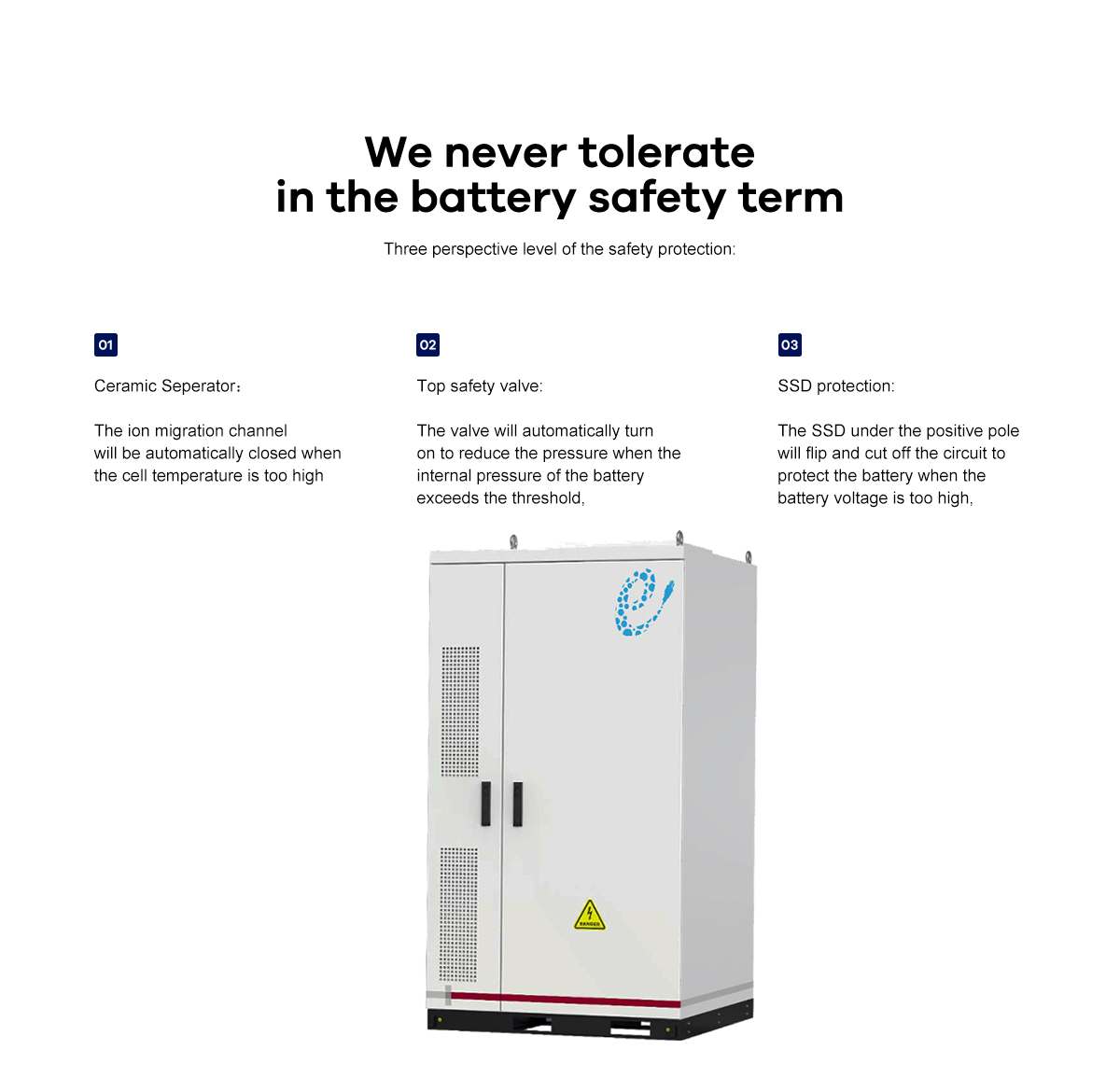

The high voltage control box contains the BCU, relays, fuses, power resistor, pre-charge resistor and other electrical components to monitor and protect battery clusters in real time.

The product has the characteristics of high energy density, wide temperature range, long life, light weight, high safety, small installation area and other characteristics.

Get Li Ion Price


Configuration Parameters of Different Models of Outdoor Cabinets
Number of battery packs	8
Series parallel mode	1P416S
Rated voltage	1331.2V
Energy	399.36kWh
Power	Rated power for charging and discharging 0.5P, maximum 1.0P for 1min
Voltage range	1123.2-1497.6V
Dimensions	1313.2±3×1300±3×2402±5mm（W×L×H）
Weigh	3650kg

Other Characteristic Parameters of the Outdoor Cabinet
No.	Item		Parameters	Remark
1	Working Environment Temperature		-30~50℃	Heating activated below 3°C and cooling activated above 27°C.
2	Operating Temperature		-15~50℃	Charging: 5~50°C; Discharging: -15~50°C
3	Shipment SOC（%）		30%	(25±2)℃
4	Altitude		≤2500m
5	Storage Condition	Storage Temperature	-20~55℃	Less than 3 days
			0~40℃	Less than 3 months
			15~30℃	More than 3 months
			20~25℃	Over six months, complete charge and discharge maintenance is required
		Humidity	RH≤90%
		SOC	30~50%	Fully charged storage is prohibited
6	Others	Protection Level	IP55
		Corrosion-proof Grade	C4
		Cooling Mode	Liquid Cooling
		Communication Method	CAN\RS485\Ethernet
		Cable Connection	Fast Plug
7	Certification standards	Outdoor Cabinet	UL1973
			UL9540A
			FCC
			IEC62619
			IEC62477-1
			EMC
			UN38.3
8	Auxiliary power	Voltage Range	220±15%VAC
		Frequency	50/60±3 Hz
		Max Current	30.2A

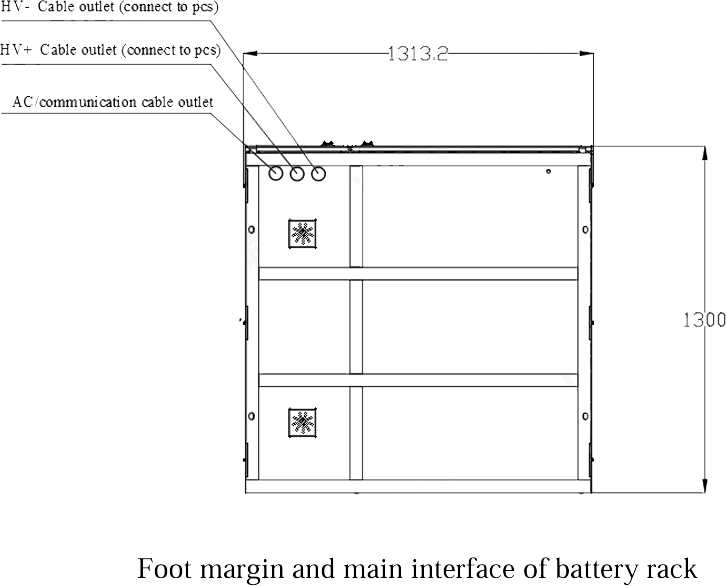

Foot Margin

Layout of the Rack

Varied layout forms and their corresponding spacing are presented in the figures below.

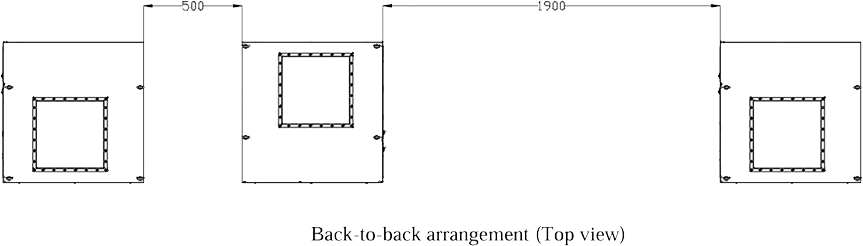

For back-to-back arrangement, the minimum clearance between racks is 500mm, and the recommended distance between the front sides of the cabinet is 1900mm.

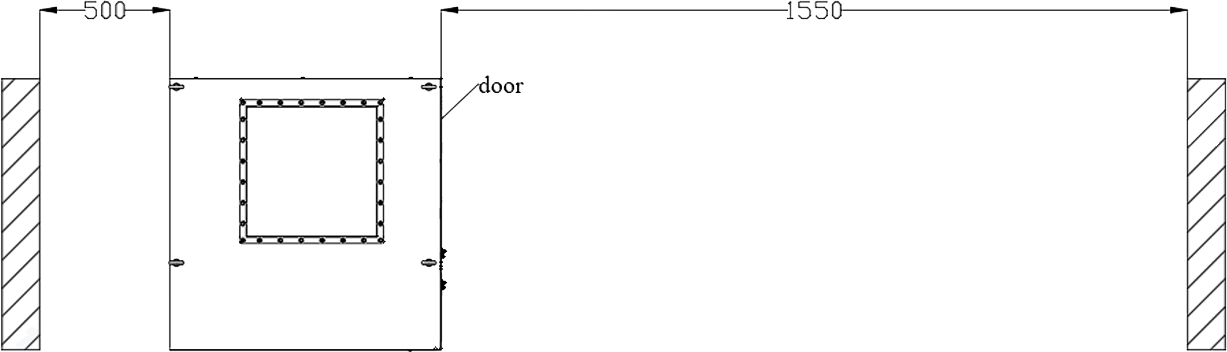

For back-to-enclosure arrangement, the minimum clearance between the back side of rack and the enclosure is 500mm, and the recommended clearance between the front side of rack and the enclosure is 1550mm. (For installation and maintenance).

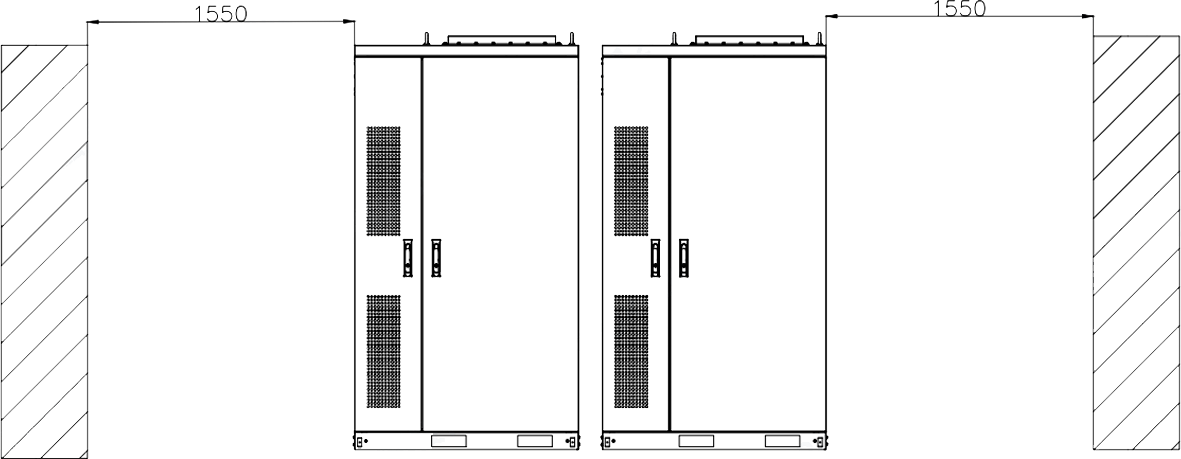

In a parallel arrangement, the minimum distance between the battery cabinets should be greater than 20mm, and the distance between the cabinets and the wall should not be less than 1550mm.
