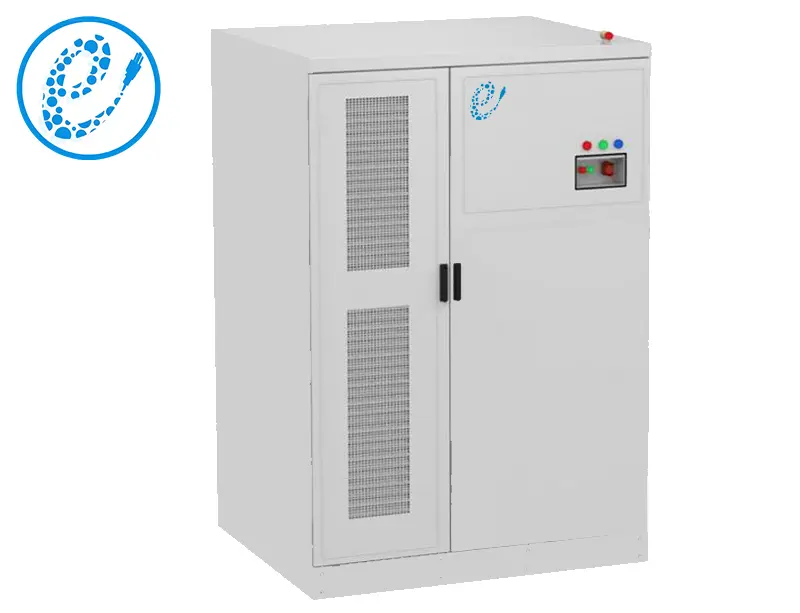

High-energy lithium battery system providing 215 kWh commercial energy storage capacity at 768V and 280A (280Ah) capacity, configured in a 240-series arrangement. Suitable for grid-scale energy storage projects, data centers, and electric vehicle charging stations.

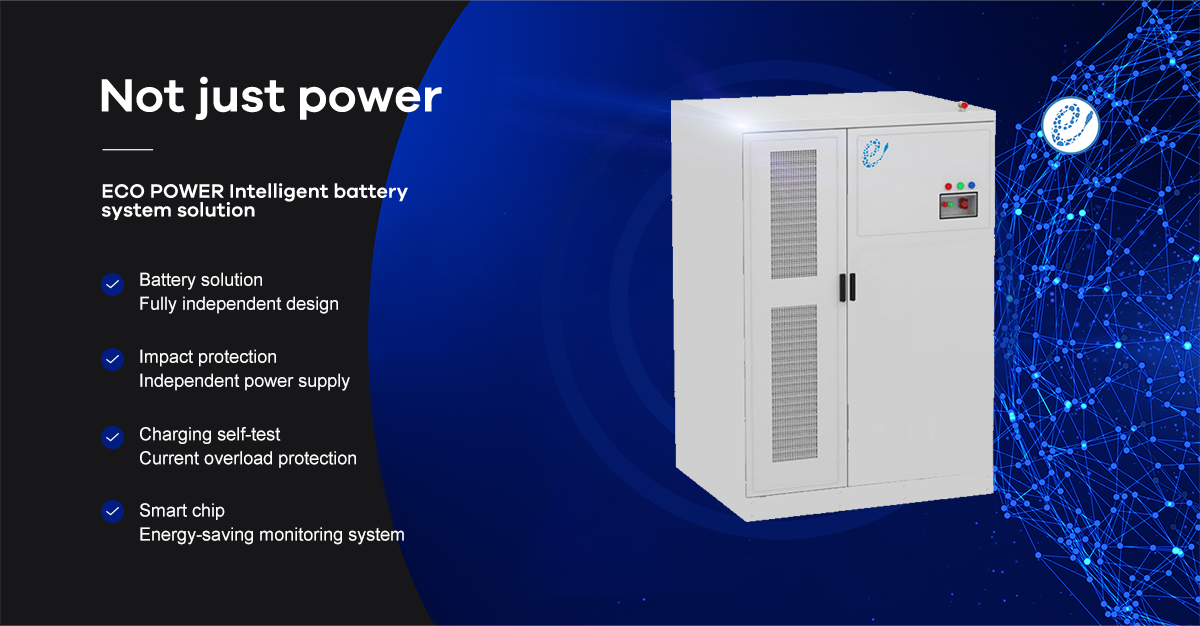

_01.png "768V280A(280AH1P240S)_01.png")
| Model | SSXXXX02-215KWh-768V280A(280AH1P240S) | Remarks |
| DC side | ||
| Rated energy storage capacity of the battery | 215kWh | |
| System rated voltage | 768V | |
| System voltage range | 672V~864V | |
| Battery type | Lithium iron phosphate battery (LFP) | |
| Series and parallel connection of battery packs | 1P*48S*5S | |
| Maximum charging and discharging current | 140A | |
| Communication side | ||
| Rated AC power | 100kW | |
| Rated AC current | 144A | |
| Rated AC voltage | 400V, 3W+N+PE | |
| Rated AC frequency | 50/60Hz | |
| Total harmonic distortion rate of current THDI | <3% (rated power) | |
| Total harmonic distortion rate of voltage THDU | <3% (linear load) | |
| General parameters | ||
| Protection level | IP54 | |
| Local control display | 8.4-inch touch all-in-one machine (including 4G) | |
| relative humidity | 0~95% (non condensing) | |
| noise | Less than 78dB | |
| ambient temperature | -25 ℃~60 ℃ | |
| (Derating above 45 ℃) | ||
| Cooling method | Intelligent liquid cooling, 3kW | |
| Altitude | 3000m | |
| (Derating over 2000m) | ||
| BMS communication | Ethernet/RS485/CAN | |
| EMS communication | Ethernet/RS485/CAN | |
| Size (W * D * H) | 1500 * 1350 * 2300 | |
| Weight (approximately) | 2.8T |

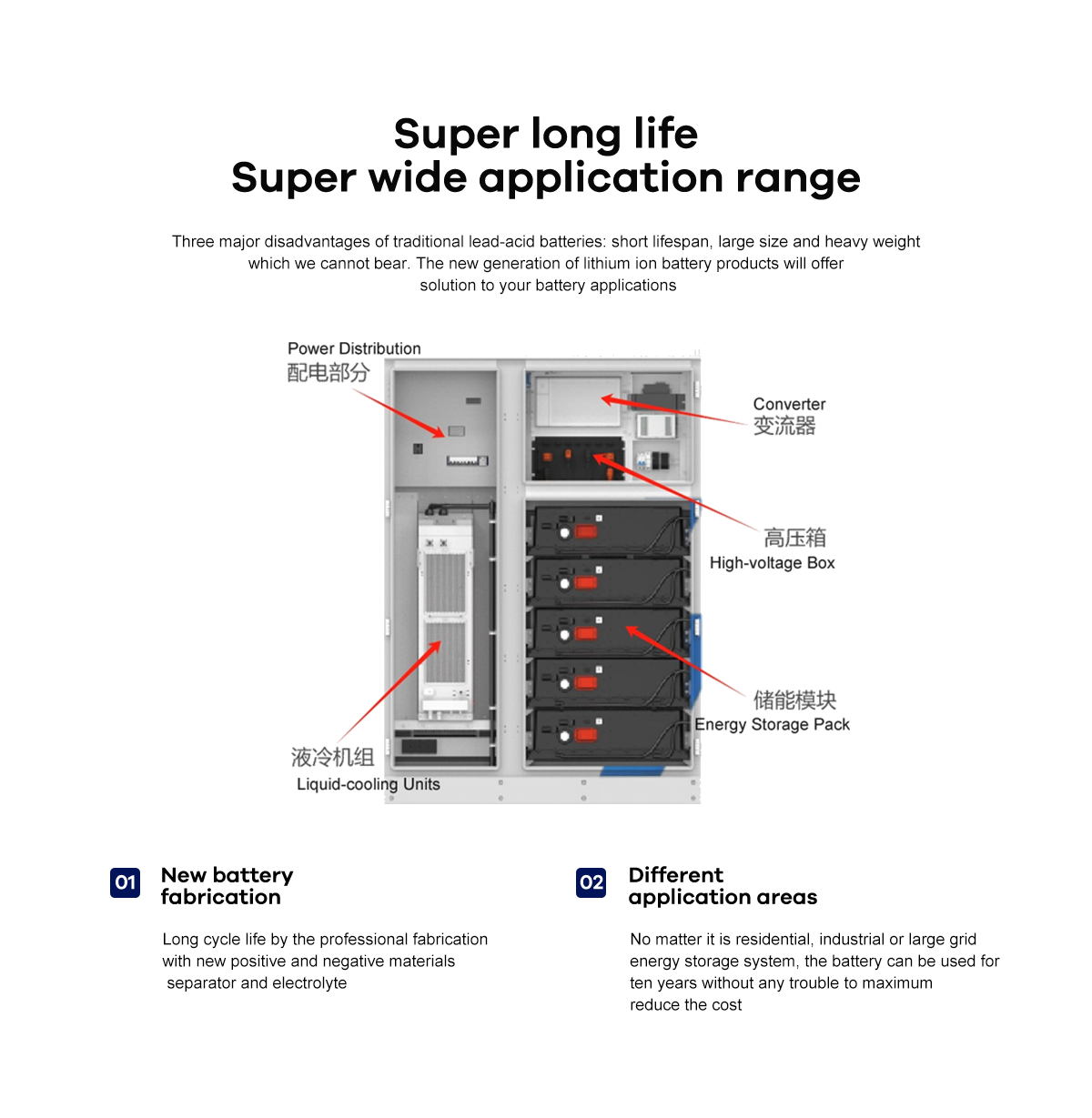

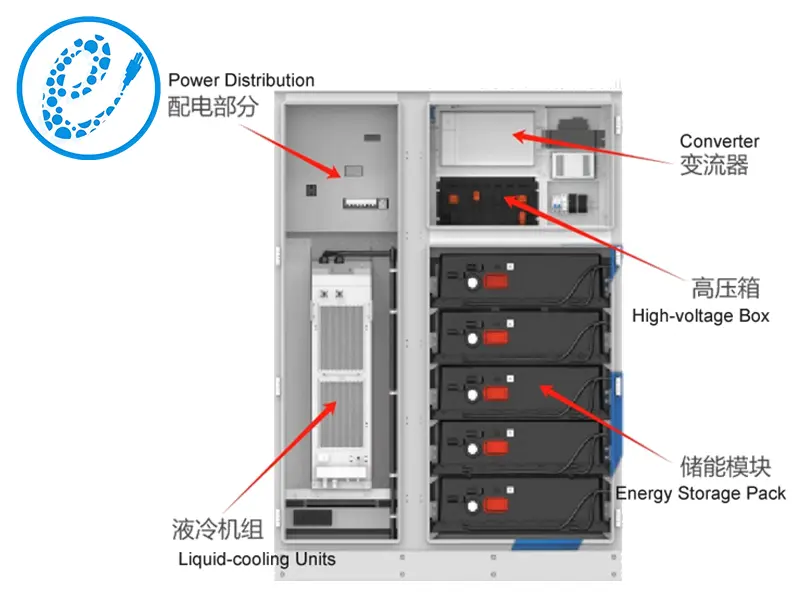

| Device Name | technical requirement | quantity | unit |

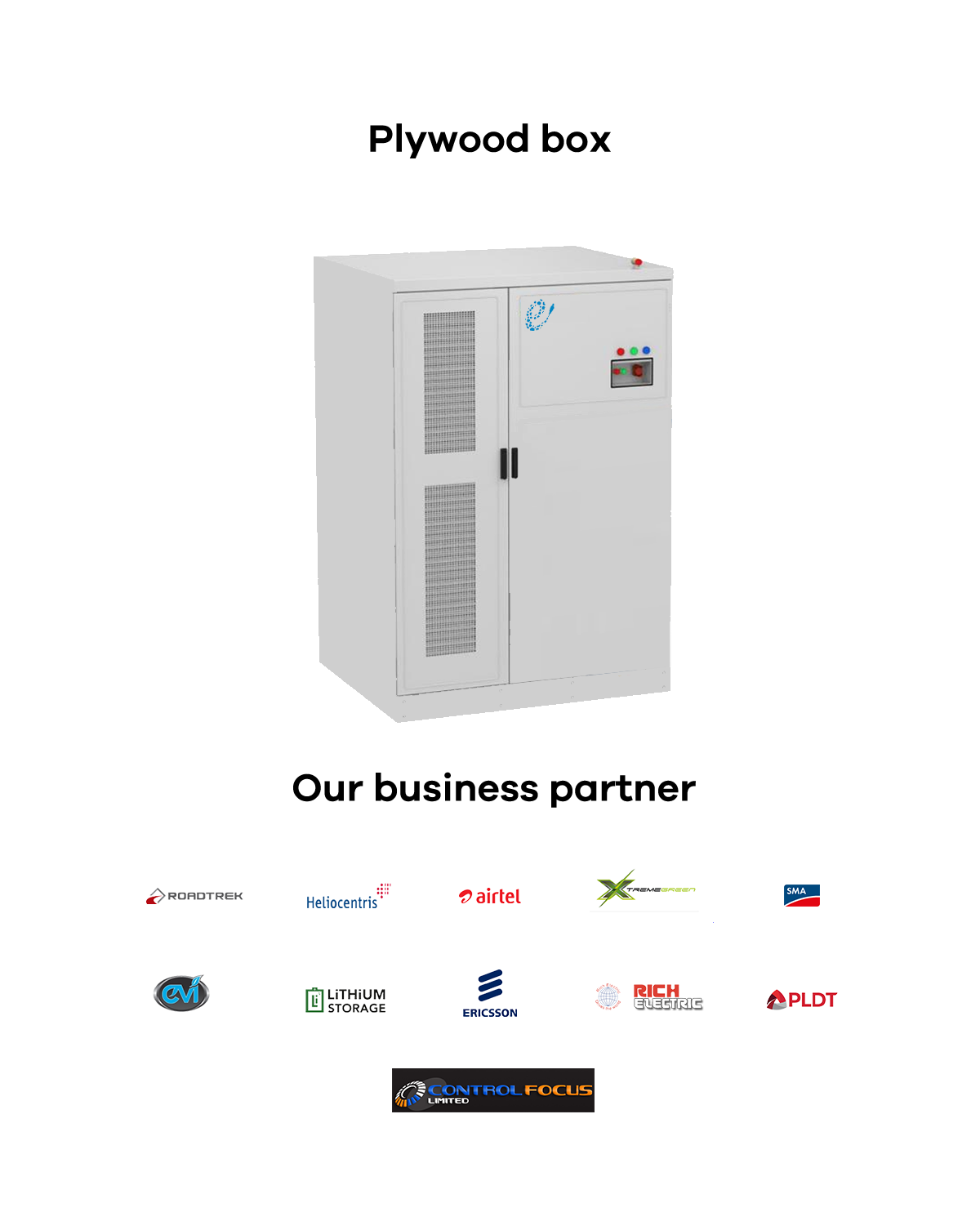

| Energy storage integrated cabinet | Battery capacity 215.04 kWh (L1500 * W1350 * H2300mm) | one | set |
| Battery system | 280Ah 215kWh | one | set |
| Energy storage inverter | 100kW | one | set |
| Local energy management system | ES-CCU | one | set |
| Liquid cooling system | 1 3kW refrigeration capacity 2kW heating liquid cooler | one | set |

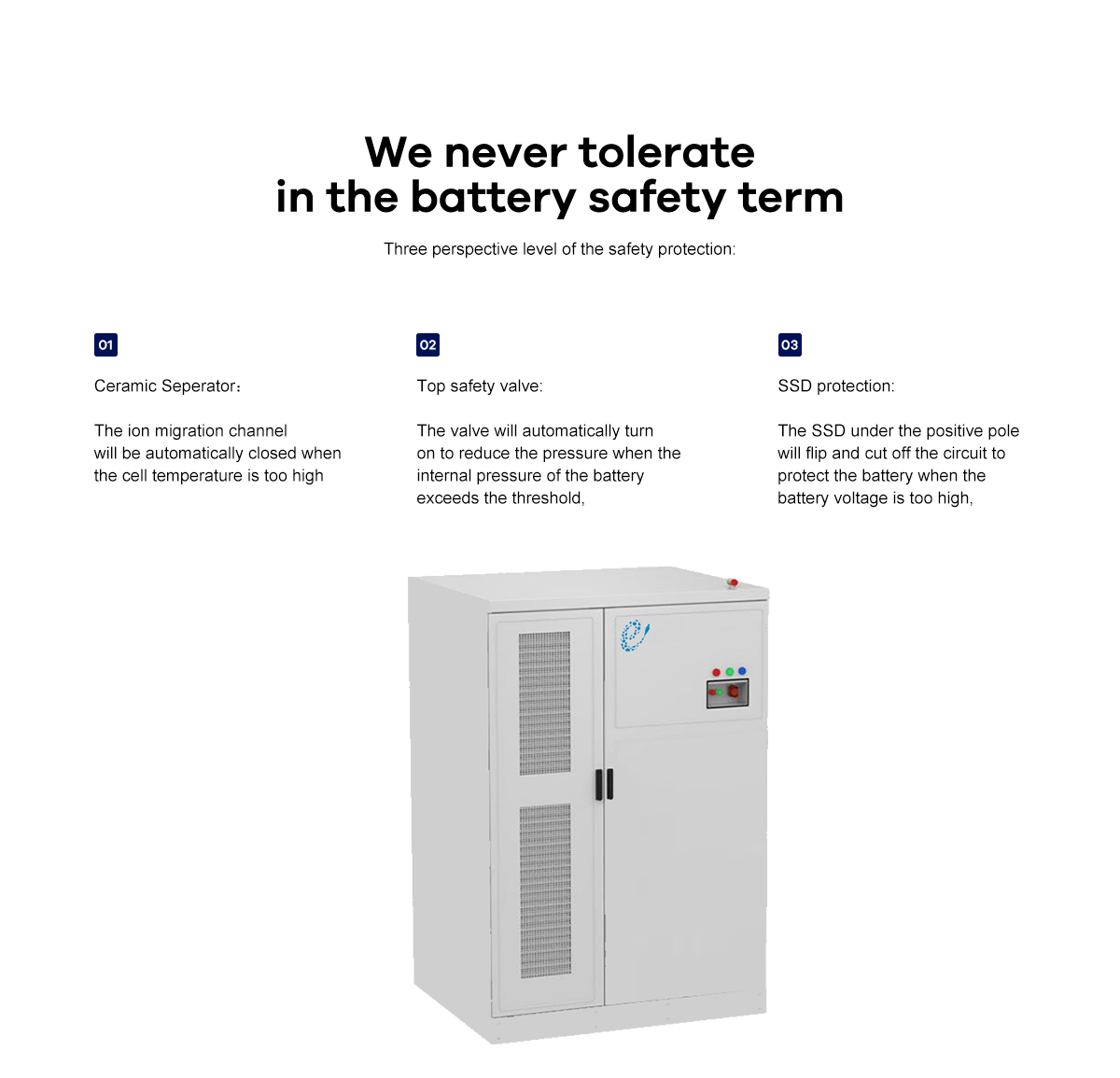

| Fire protection system | Two in one package level detector, perfluorohexane, PACK level fire protection | one | set |
| Distribution system | Plastic shell, micro break, lightning protection, socket, indicator light, electricity meter, etc | one | set |
| Auxiliary system | Water immersion, access control switch, lighting, emergency stop, etc | one | set |
_03.png "768V280A(280AH1P240S)_03.png")
_04.png "768V280A(280AH1P240S)_04.png")
_05.png "768V280A(280AH1P240S)_05.png")
_06.png "768V280A(280AH1P240S)_06.png")
_07.png "768V280A(280AH1P240S)_07.png")
_08.png "768V280A(280AH1P240S)_08.png")
_11.png "768V280A(280AH1P240S)_11.png")
_12.png "768V280A(280AH1P240S)_12.png")
_13.png "768V280A(280AH1P240S)_13.png")
