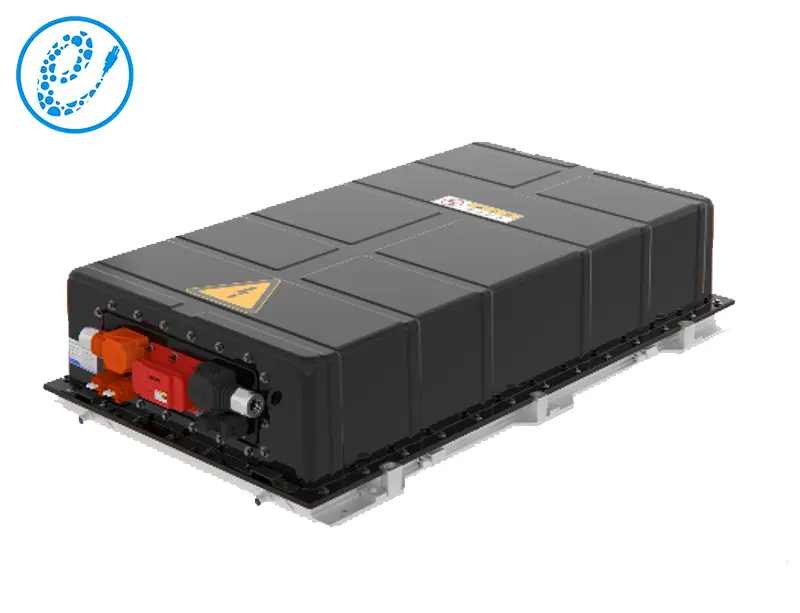

The PS13XX02-96.6V 302Ah battery pack is designed for electric buses, providing efficient and reliable power with a 30-series cell configuration (1P). It offers a high energy capacity, excellent cycle life, and enhanced safety features, making it ideal for urban transport solutions.
.png "302ah1p30s_(1).png")
| No. | Items | EP-LFP302Ah STANDARD PACK | Note | |
| PS13XX02-96.6V302A | ||||
| 302AH1P30S | ||||
| 1 | Nominal voltage(V) | 96.6 | ||
| 2 | Operating voltage(V) | min | 75 | T＞0℃ |
| 3 | max | 109.5 | ||
| 4 | Nominal capacity(Ah) | 302 | ||
| 5 | Nominal energy（KWh ） | 29.173 | ||
| 6 | Cell Configuration | 1P30S | ||
| 7 | Maximum Charging Rate | 0.8C | ||
| 8 | Maximum Discharging Rate | 0.8C | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Cooling method | Liquid cooling | ||
| 12 | Heating method | Liquid heating | ||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Protection level | IP68 | ||
| 15 | Weight | 207kg | ||
| 16 | Dimension L （mm） | 950 | ||
| Dimension B （mm） | 630 | |||
| Dimension H （mm） | 240 | |||
High Reliability: High-strength pack assembly design meets GB/T 31467.3 high safety standards.
High Safety: The cells use a high-safety lithium iron phosphate (LFP) system, with BMS for real-time monitoring and timely warning protection.
High Weather Resistance: Features an efficient thermal management system with liquid cooling, supporting an operating temperature range of -30°C to +55°C, adaptable to various regional applications.
Rich Power Distribution: Can be configured with an energy range from 115kWh to 595kWh, meeting the needs of different bus models.
.png "302ah1p30s_(2).png")
.png "302ah1p30s_(3).png")
.png "302ah1p30s_(4).png")
.png "302ah1p30s_(5).png")
.png "302ah1p30s_(6).png")
