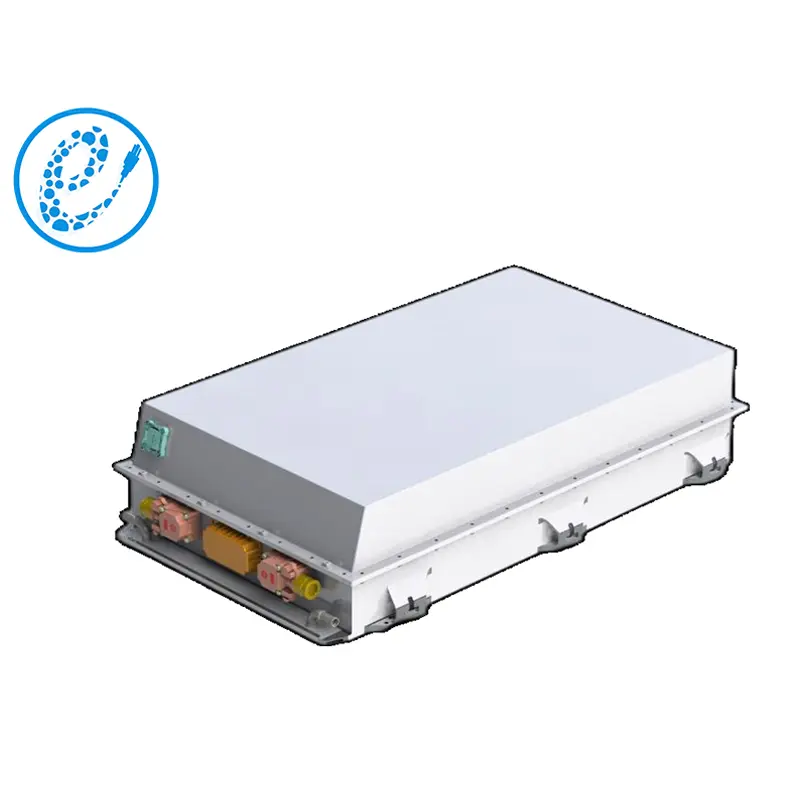

PS020509-153.6V173A(173AH1P48S) liquid-cooling lithium pack features a 1P48S configuration with a rated energy of 26.5kwh and a rated voltage of 153.6 V. Whether it's a reliable source of energy for an electric vehicle or a powerful backup system for industrial applications, this kind of lithium battery pack is up to the task.
| No. | Items | EP-LFP 173Ah STADARD PACK | Note | |
| PS020509-153.6V173A | ||||
| 173AH1P48S | ||||
| 1 | Nominal voltage(V) | 153.6 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 26.5 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 173 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 86.5 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 173 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1064 | ||
| Dimension B (mm) | 624 | |||
| Dimension H (mm) | 240 | |||
