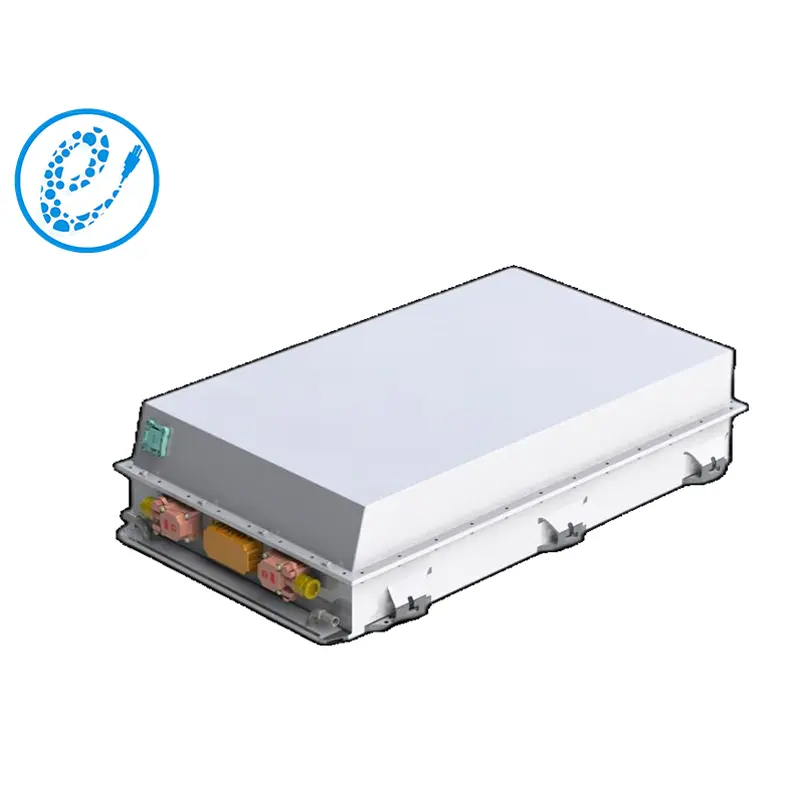

PS020509-115.2V304A(304AH1P36S) lithium battery pack is in 1P36S configuration, which consists of 1 parallel battery pack (1P) and 36 series battery packs (36S). The 35.02kwh energy rating of this lithium battery pack provides you with a stable and powerful energy supply. From electric cars and forklift trucks to back-up energy sources, this lithium ion power pack is up to the task.
| No. | Items | EP-LFP 304Ah STADARD PACK | Note | |
| PS020509-115.2V304A | ||||
| 304AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.2 | ||
| 2 | Operating voltage(V) | min | 90 | |
| 3 | max | 131.4 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 35.02 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 304 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 152 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 304 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1064 | ||
| Dimension B (mm) | 624 | |||
| Dimension H (mm) | 240 | |||
