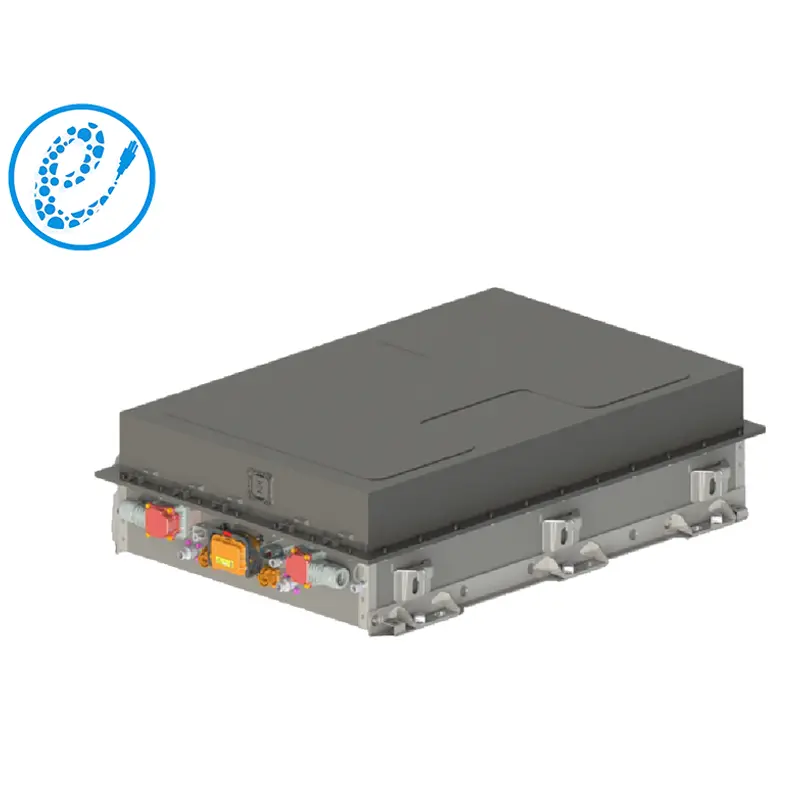

PS050605-164.22V173A(173AH1P51S) has a rated voltage of 164.22 and a rated capacity of 173Ah. The structure of the pack is reliable, with good resistance to vibration and fatigue; the process is controllable, with no over-soldering and false soldering to ensure that the battery cells are 100% free of damage; the cost is cheap, and the automation cost of the PACK line is low, including the production equipment, production loss, and the pack is easy to disassemble, which makes the battery pack easy to maintain and repair. Low cost, low automation cost of PACK production line, including production equipment, production loss, easy to disassemble the pack so that the battery pack is easy to maintain, repair, low cost, and the battery cell can be laddered to good use.
| No. | Items | EP-LFP 173Ah STADARD PACK | Note | |
| PS050605-164.22V173A | ||||
| 173AH1P51S | ||||
| 1 | Nominal voltage(V) | 164.22 | ||
| 2 | Operating voltage(V) | min | 127.5 | |
| 3 | max | 186.15 | ||
| 4 | Cell Configuration | 1P57S | ||
| 5 | Nominal energy（KWh ） | 28.41 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 173 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 173 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 173 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 950 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 250 | |||
The battery box is currently equipped with a full range of VDA series batteries, which can be adapted to most commercial vehicle models in the market (bus, heavy truck, mining dump, construction machinery, etc.)
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
