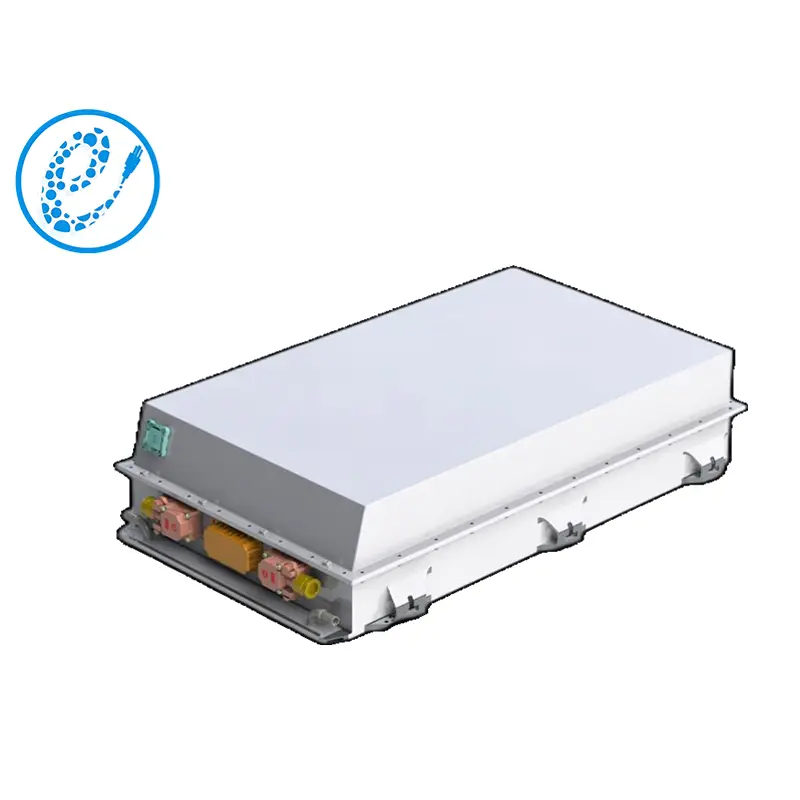

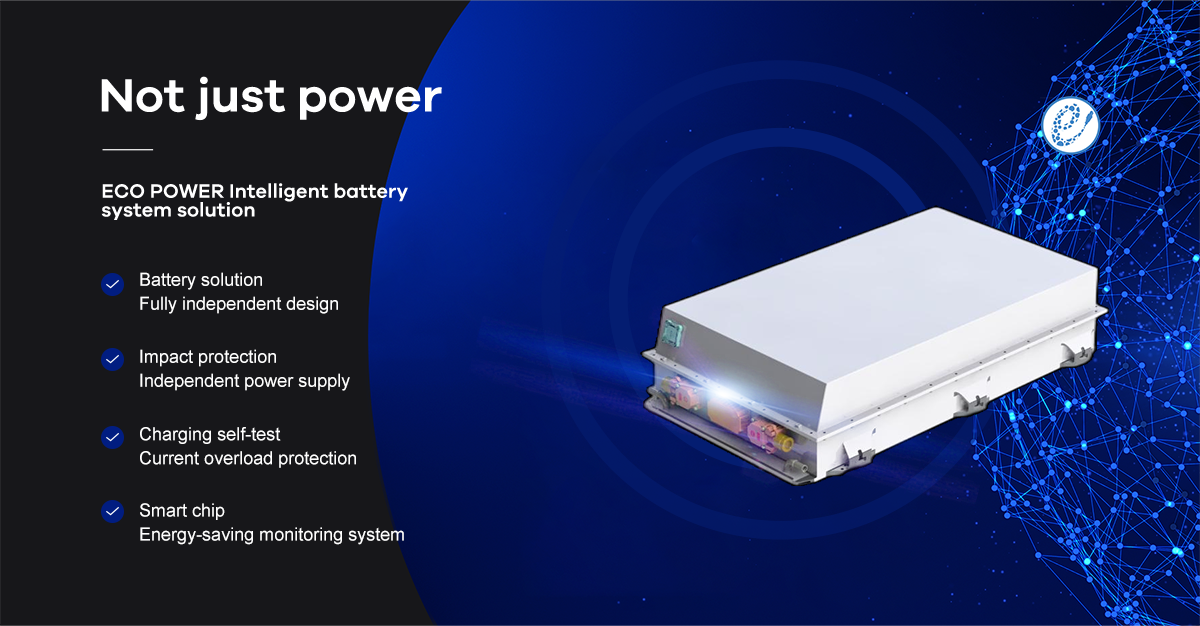

PS020510-115.2V277A(277AH1P36S) lifepo4 packs liquid-cooling lithium battery pack is engineered for versatility, catering to a wide spectrum of applications. From powering residential and commercial systems to supporting remote communication stations, this battery effortlessly adapts to your unique energy requirements. Embrace the freedom to tailor your energy solutions to your specific needs.
| No. | Items | EP-LFP 277Ah STADARD PACK | Note | |
| PS020510-115.2V277A | ||||
| 277AH1P36S | ||||
| 1 | Nominal voltage(V) | 115.2 | ||
| 2 | Operating voltage(V) | min | 90 | |
| 3 | max | 131.4 | ||
| 4 | Cell Configuration | 1P36S | ||
| 5 | Nominal energy（KWh ） | 31.9 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 227 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 113.5 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 227 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Liquid cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1064 | ||
| Dimension B (mm) | 624 | |||
| Dimension H (mm) | 240 | |||
