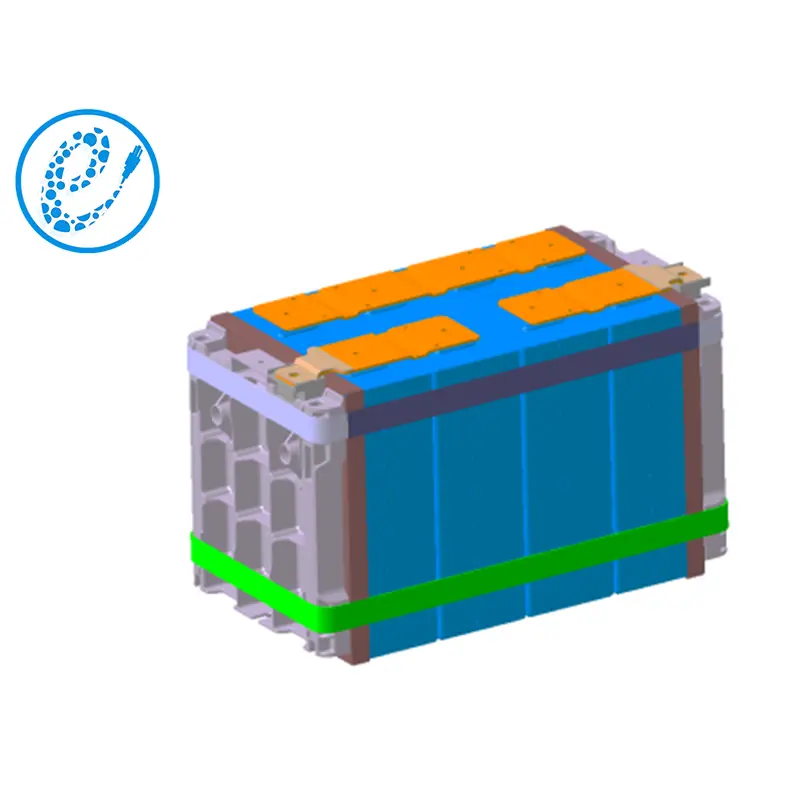

MS0302-6.44V560A-(280AH2P2S) features a 2P2S , 6.44V rated voltage, 560Ah rated capacity configuration.The large 560Ah capacity ensures long-lasting power support for your equipment and systems without the need for frequent charging. The built-in BMS power management system allows for the perfect combination of efficiency and longevity, making it the best choice for businesses looking for a reliable, high-capacity energy storage solution.
| Items | MS0302 | Note | ||
| 6.44V840A3P2S | 6.44V560A2P2S | |||
| Nominal voltage(V) | 6.44 | 6.44 | ||
| Operating voltage(V) | min | 5 | 5 | |
| max | 7.3 | 7.3 | ||
| Nominal capacity(Ah) | 840 | 560 | 25±2℃ | |
| Nominal energy（KWh ） | 5.409 | 3.606 | 25±2℃ | |
| Cell Configuration | 3P2S | 2P2S | ||
| Maximum continuous charge current（A） | 420 | 280 | 25±2℃ | |
| Maximum continuous discharge current（A） | 840 | 560 | 25±2℃ | |
| Maximum pulse discharge current（≤10s)(A） | 1680 | 1120 | 25±2℃ | |
| SOC operating range（%） | 20~100 | |||
| Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | ||
| Module cooling method | Natural cooling | |||
| Module heating film | NO | |||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||
| Dimension L （mm） | 485.4 | 339.2 | ||
| Dimension B （mm） | 178 | 178 | ||
| Dimension H （mm） | 210 | 210 | ||
