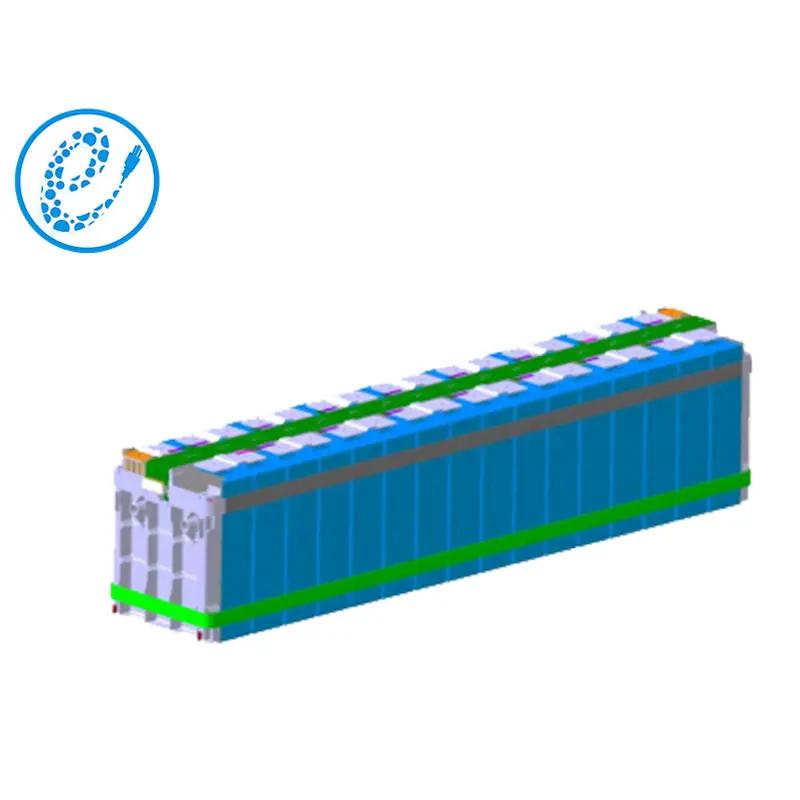

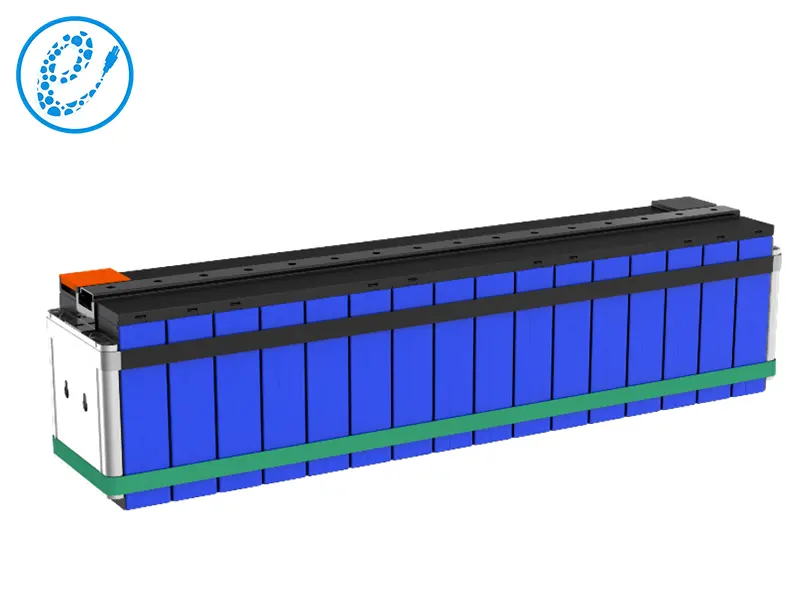

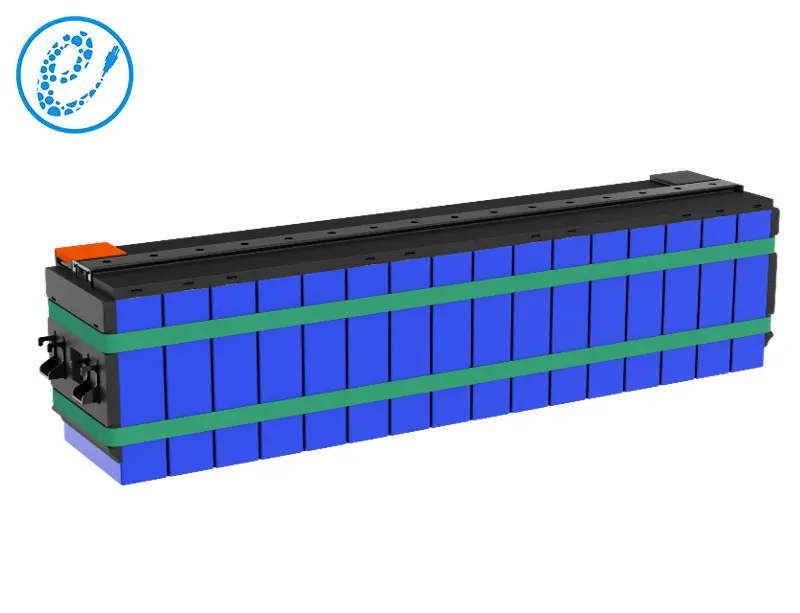

With a rated capacity of 206Ah and a rated voltage of 51.52V, this battery features a 1P16S arrangement, providing a high-performance solution for a variety of applications. Whether you are optimising the power efficiency of an electric vehicle, enhancing a solar storage system, or need a reliable backup power source, the MS0302-51.52V206A LiFePO4 battery module will meet your expectations.
.png "206ah1p16s_(1).png")
| No. | Items | EP-LFP206Ah STANDARD MODULE | Note | |
| MS0302-51.52V206A | ||||
| 206AH1P16S | ||||
| 1 | Nominal voltage(V) | 51.52 | ||
| 2 | Operating voltage(V) | min | 40 | T＞0℃ |
| 3 | max | 58.4 | ||
| 4 | Nominal capacity(Ah) | 206 | ||
| 5 | Nominal energy（KWh ） | 10.613 | ||
| 6 | Cell Configuration | 1P16S | ||
| 7 | Maximum continuous charge current（A） | 206 | ||
| 8 | Maximum continuous discharge current（A） | 206 | ||
| 9 | Maximum pulse discharge current（≤180s）（A） | 412 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating film | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension （Aluminium Profile End Plate） | 911*176*227（mm） | L*B*H | |
| Dimension（Assembly End Plate） | 936*176*227（mm） | |||
.png "206ah1p16s_(4).png")

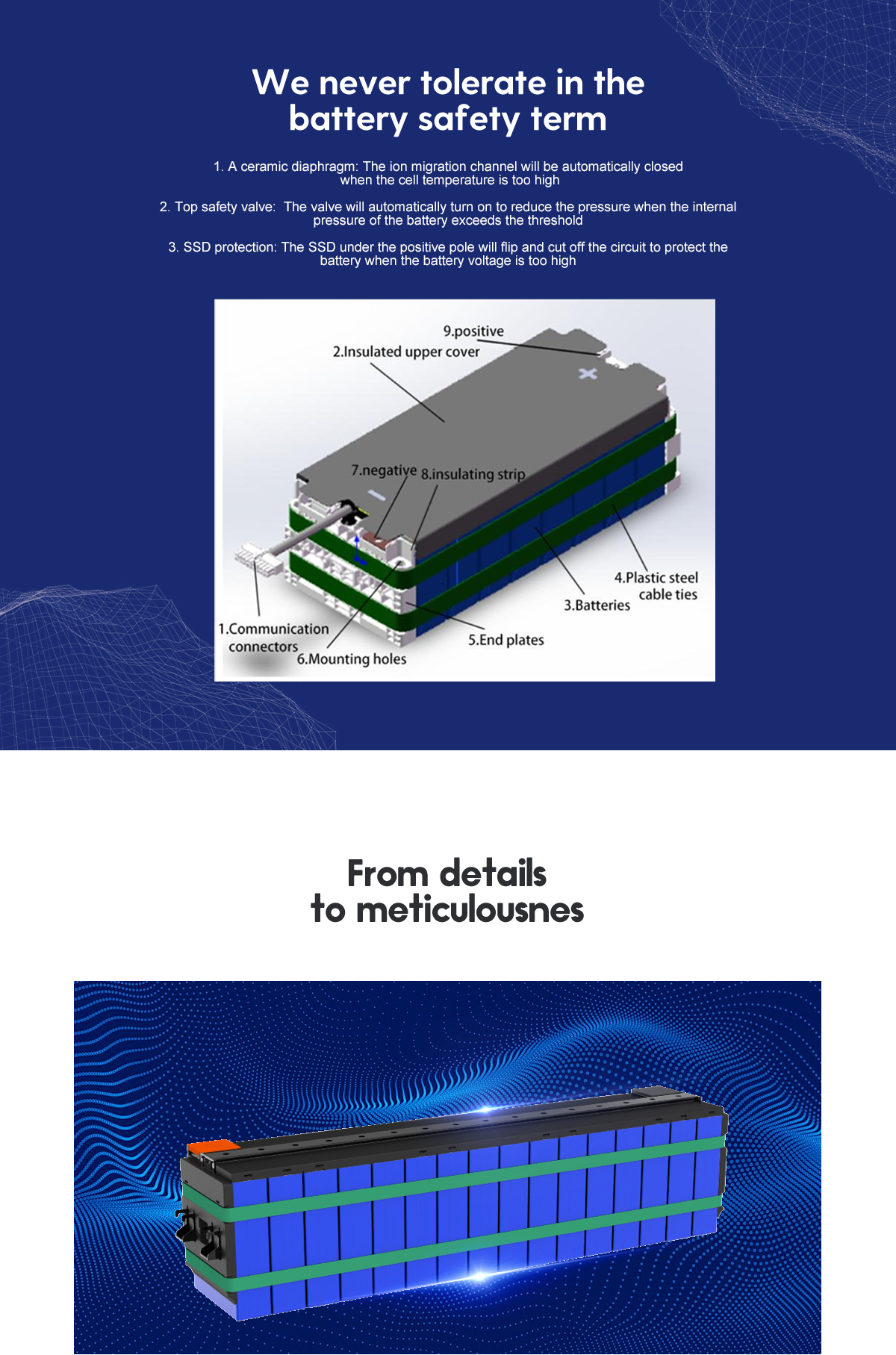

.png "206ah1p16s_(6).png")
