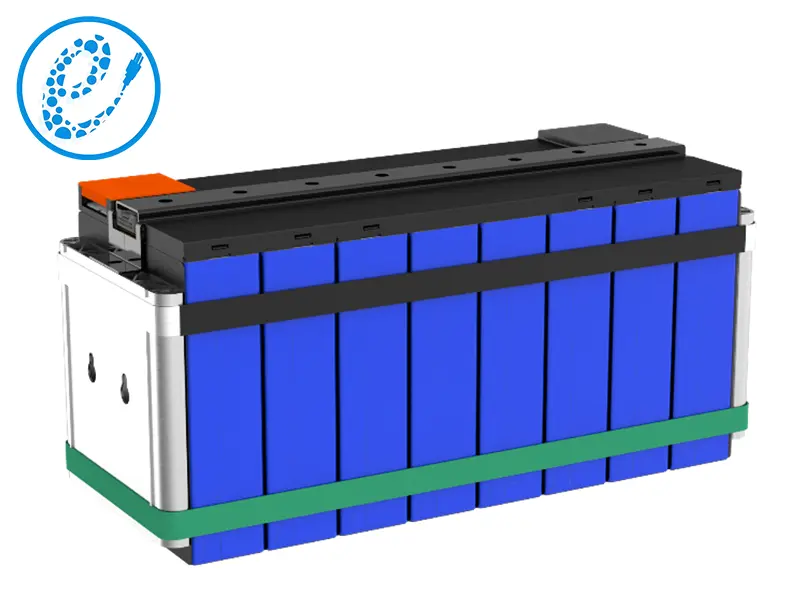

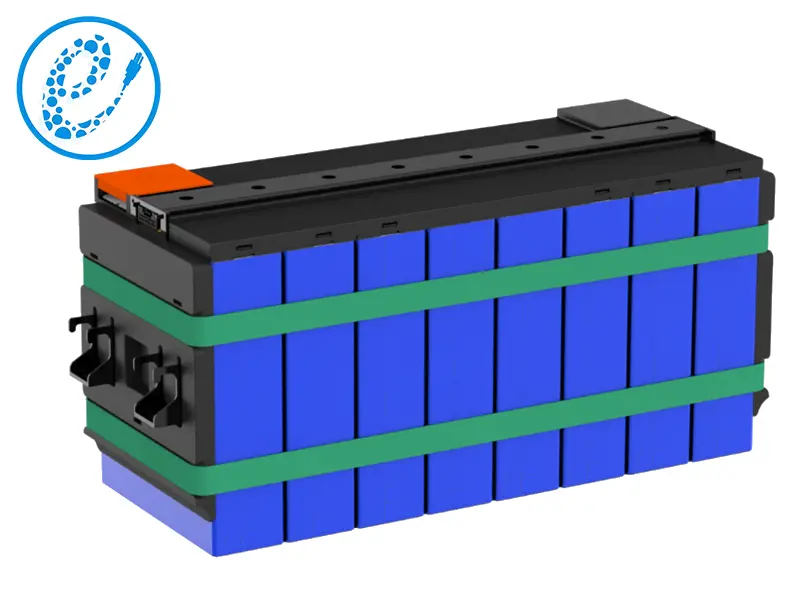

Compact and high-capacity lithium battery module with a voltage of 19.2V and 228Ah capacity, configured in an 8-series configuration.
| No. | Items | EP-LFP228Ah STANDARD MODULE | Note | |
| MS0302-25.76V228A | ||||
| 228AH1P8S | ||||
| 1 | Nominal voltage(V) | 25.76 | ||
| 2 | Operating voltage(V) | min | 20 | T＞0℃ |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity(Ah) | 206 | 1/3C，100%DOD | |
| 5 | Nominal energy（KWh ） | 5.873 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P8S | ||
| 7 | Maximum continuous charge current（A） | 228 | ||
| 8 | Maximum continuous discharge current（A） | 228 | ||
| 9 | Maximum pulse discharge current（≤180s）（A） | 456 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating method | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension L （mm） | 473 | ||
| Dimension B （mm） | 176 | |||
| Dimension H （mm） | 227 | |||
