Reliable lithium LiFePO4 battery module offering 19.2V and 206Ah capacity, arranged in a 12-series configuration, supporting 2C discharge rate.
.png "206AH1P12S_(1).png")
| No. | Items | EP-LFP206Ah STANDARD MODULE | Note | |
| MS0302-38.64V206A | ||||
| 206AH1P12S | ||||
| 1 | Nominal voltage(V) | 38.64 | ||
| 2 | Operating voltage(V) | min | 30 | T＞0℃ |
| 3 | max | 43.8 | ||
| 4 | Nominal capacity(Ah) | 206 | ||
| 5 | Nominal energy（KWh ） | 7.96 | ||
| 6 | Cell Configuration | 1P12S | ||
| 7 | Maximum continuous charge current（A） | 206 | ||
| 8 | Maximum continuous discharge current（A） | 206 | ||
| 9 | Maximum pulse discharge current（≤180s）（A） | 412 | ||
| 10 | SOC operating range（%） | 10~90 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | ||
| 12 | Module cooling method | Natural cooling | ||
| 13 | Module heating method | No | Or heating film | |
| 14 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 15 | Dimension （Aluminium Profile End Plate） | 692*176*227 (mm) | L*B*H | |
| Dimension（Assembly End Plate） | 717*176*227 (mm) | |||
.png "206AH1P12S_(3).png")

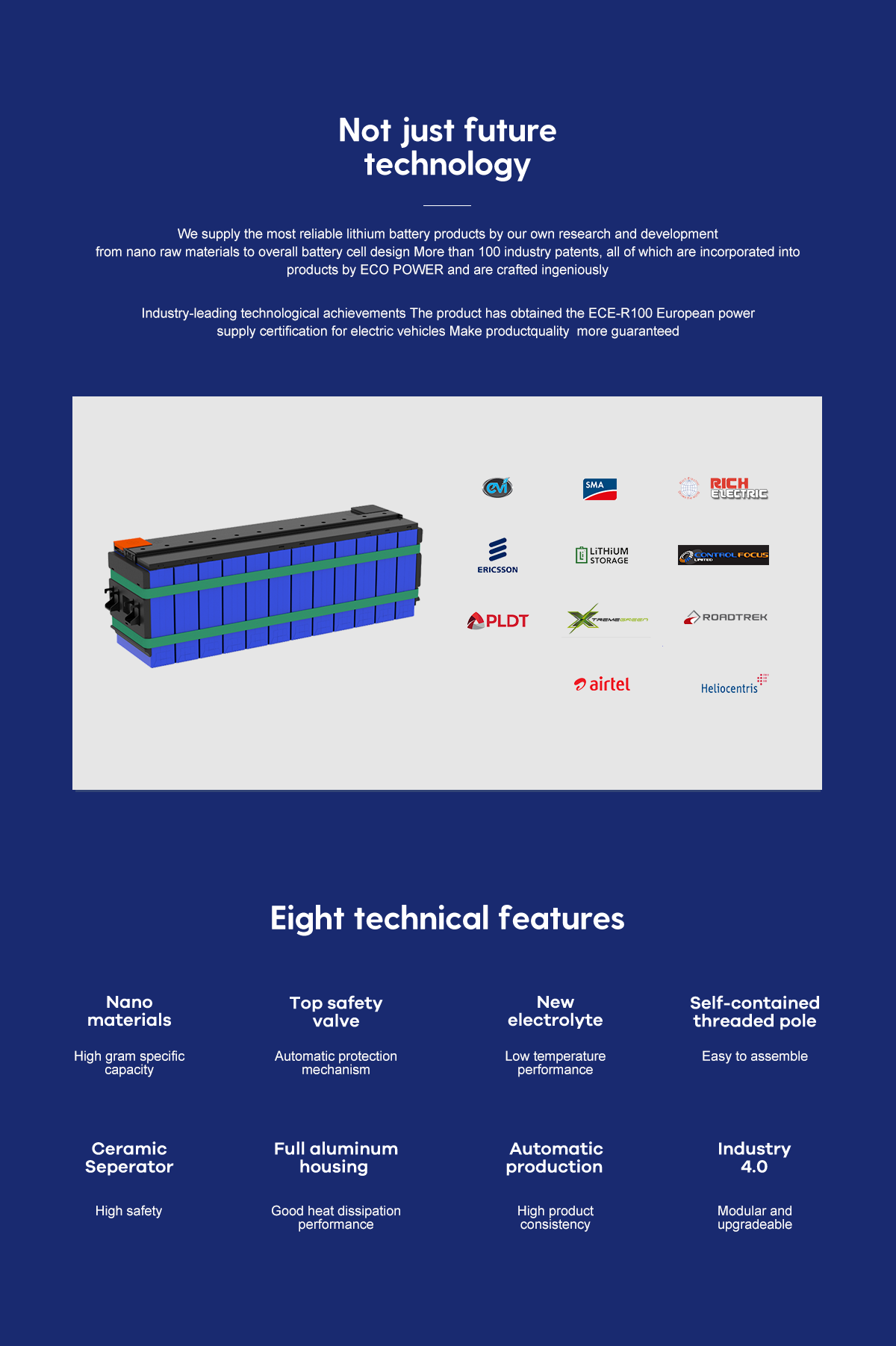

.png "206AH1P12S_(4).png")
.png "206AH1P12S_(5).png")

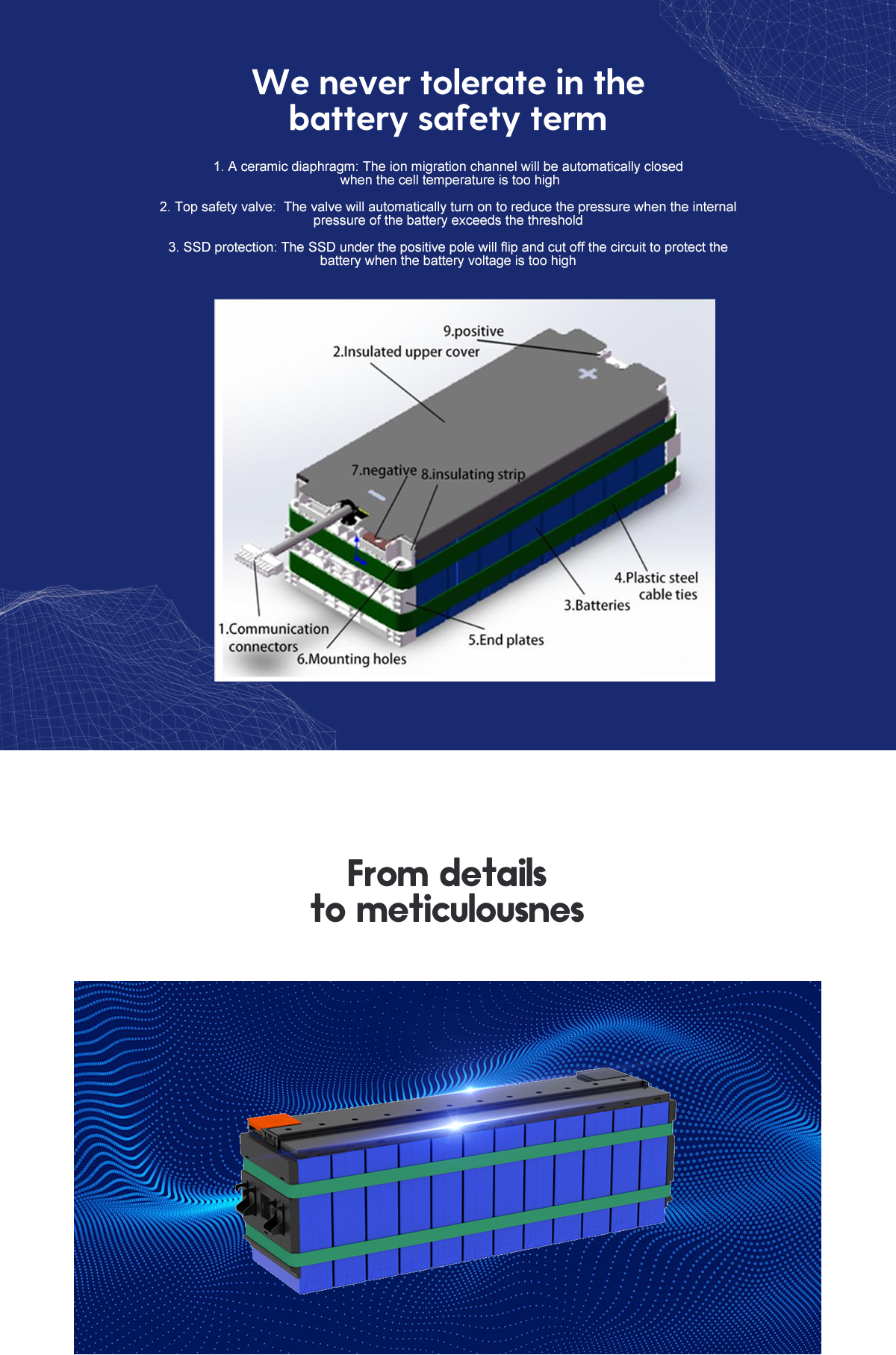

.png "206AH1P12S_(6).png")
.png "206AH1P12S_(7).png")
.png "206AH1P12S_(8).png")
.png "206AH1P12S_(9).png")
