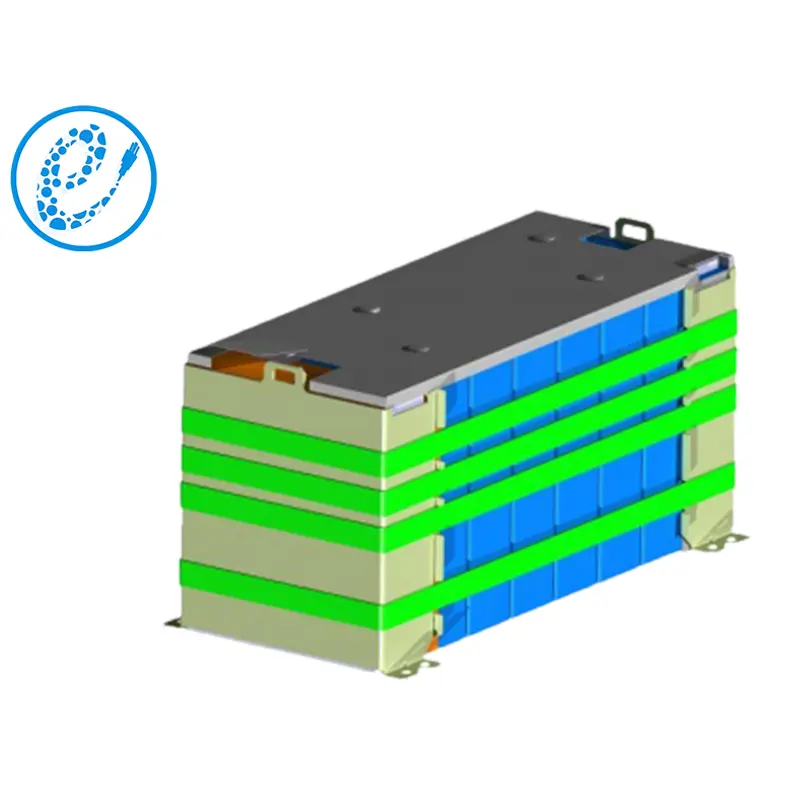

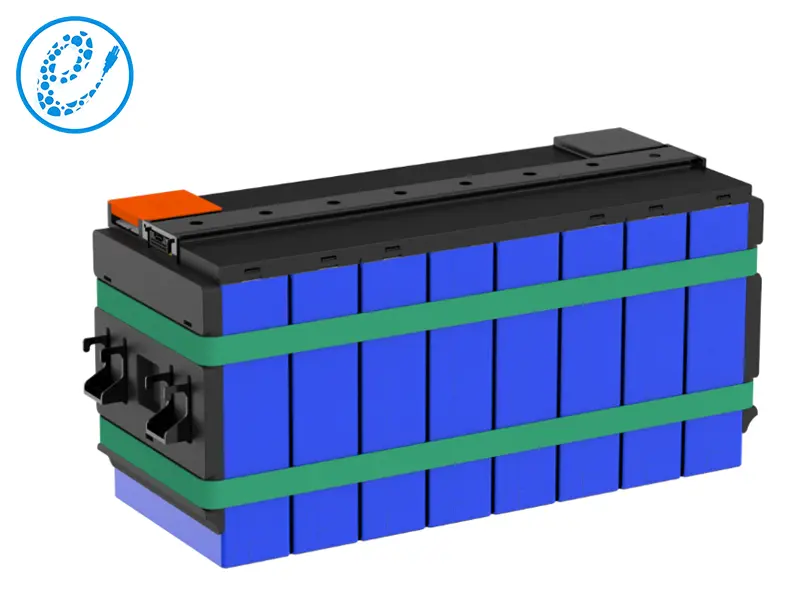

MS0302-25.6V200A The battery has a capacity of 200Ah and a rated voltage of 25.6V with a 1P5S arrangement. It ensures long-lasting power support for your equipment and systems without frequent charging. And it can meet a wide range of applications, ideal for power tools, electric vehicles, and renewable energy systems.
| No. | Items | EP-LFP200Ah STANDARD MODULE | Note | |
| MS0302-25.6V200A | ||||
| 200Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | Cell 2.5V~3.65V |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity ( Ah) | 200 | 25±2℃ | |
| 5 | Nominal energy (KWh) | 5.12 | 25±2℃ | |
| 6 | Maximum continuous charge current (A) | 100 | 25±2℃ | |
| 7 | Maximum continuous discharge current (A) | 200 | 25±2℃ | |
| 8 | Maximum short pulse discharge current (≤10s)(A) | 400 | 25±2℃ | |
| 9 | SOC operating range (%) | 20~100 | ||
| 10 | Insulation requirements (MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | |
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating film | No | ||
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Module self-discharge | ≤3% | 25±2℃,50%SOC | |
| 15 | Dimension L (mm) | 442 | ||
| Dimension W (mm) | 215 | |||
| Dimension H (mm) | 220 | |||
