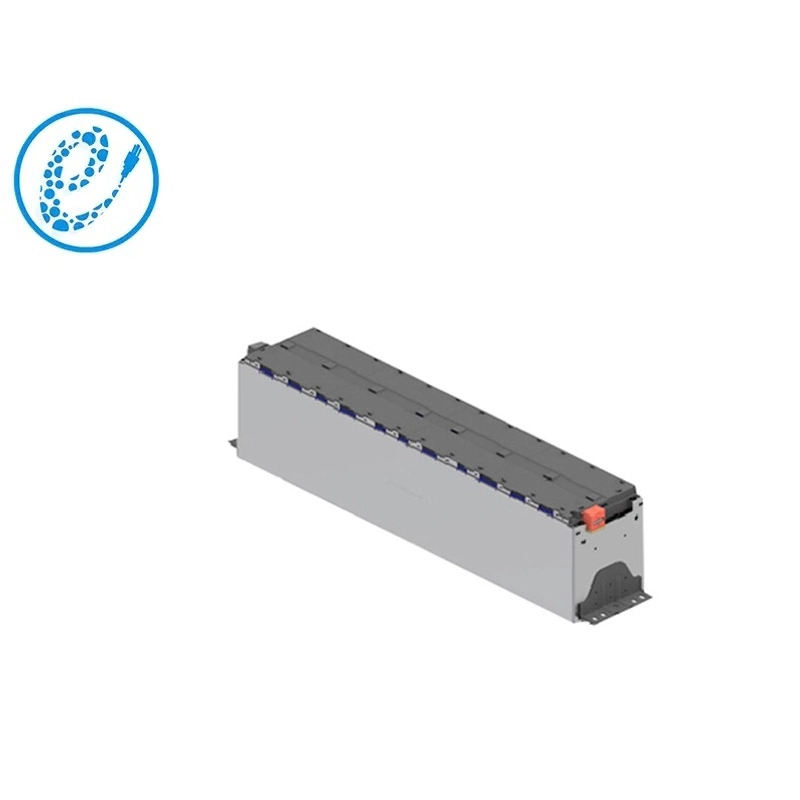

MS0202-25.76V304A-(304AH1P8S) Batteries are designed with a standard voltage of 25.76V and a standard capacity of 304Ah. The internal battery management system optimises the distribution of energy for superior efficiency and longevity. This configuration ensures a balanced flow of power, maximising battery life and reducing energy waste.
.png "2_(1).png")
| No. | Items | EP-LFP304Ah STANDARD MODULE | Note | |||||
| MS0202-12.88V304A | MS0202-19.32V304A | MS0202-25.76V304A | MS0202-35.42V304A | MS0202-38.64V304A | ||||
| 304Ah1P4S | 304AH1P6S | 304Ah1P8S | 304Ah1P11S | 304Ah1P12S | ||||
| 1 | Nominal voltage(V) | 12.88 | 19.32 | 25.76 | 35.42 | 38.64 | ||
| 2 | Operating voltage(V) | min | 10 | 15 | 20 | 27.5 | 30 | T＞0℃ |
| 3 | max | 14.6 | 21.9 | 29.2 | 40.15 | 43.8 | ||
| 4 | Nominal capacity(Ah) | 304 | 1/3C，100%DOD | |||||
| 5 | Nominal energy（KWh ） | 3.915 | 5.873 | 7.831 | 10.767 | 11.746 | 1/3C，100%DOD | |
| 6 | Cell Configuration | 1P4S | 1P6S | 1P8S | 1P11S | 1P12S | ||
| 7 | End of life residual capacity (Ah) | 304 | ||||||
| 8 | Maximum continuous charge current（A） | 152 | ||||||
| 9 | Maximum continuous discharge current（A） | 304 | ||||||
| 10 | Maximum pulse discharge current（≤180s）（A） | 608 | ||||||
| 11 | SOC operating range（%） | 10~90 | ||||||
| 12 | Insulation requirements(MΩ) | ≥20 | ||||||
| 13 | Module cooling method | Natural cooling | ||||||
| 14 | Module heating film | No | Or heating film | |||||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |||||
| 16 | Dimension L （mm） | 321 | 465 | 608 | 824 | 895 | ||
| Dimension B （mm） | 179 | 179 | 179 | 179 | 179 | |||
| Dimension H （mm） | 220 | 220 | 220 | 220 | 220 | |||
