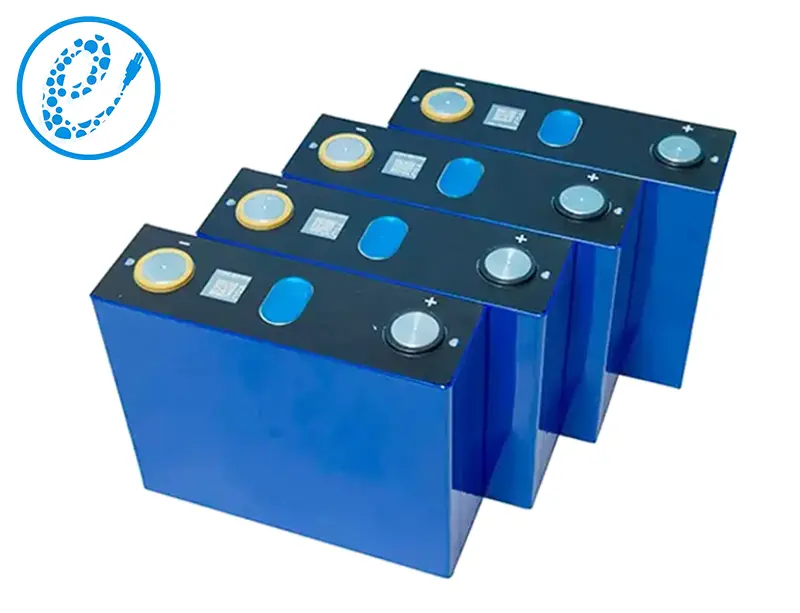

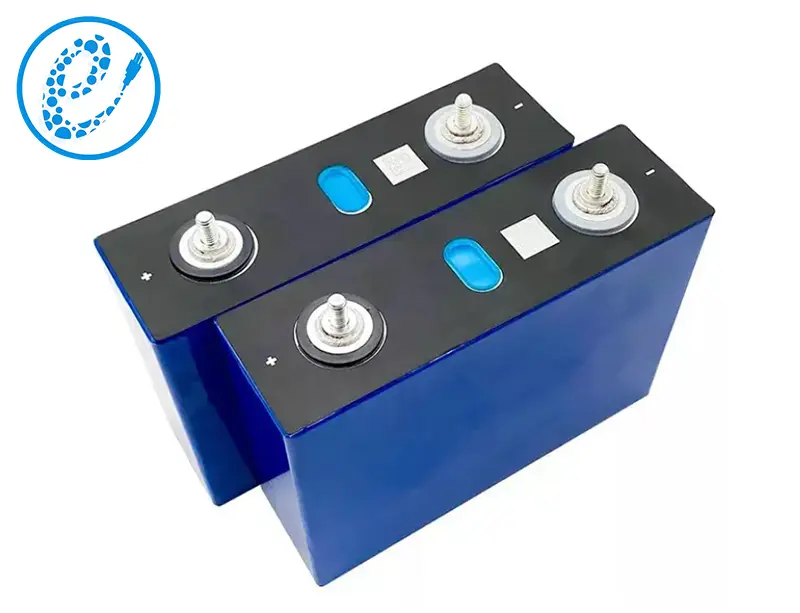

The 150Ah lithium iron phosphate (LiFePO4) battery cell offers high-capacity, reliability, and safety for various applications, from electric vehicles to renewable energy storage systems.
| Item | Specification | |
| Dimension | 174mm*53.8mm*147.8mm | |
| Weight | 2.85±0.15kg | |
| Min. capacity | 150Ah (1C) @ 25℃ | |
| Min. energy | 480Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.5mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.5V | |
| Current | Maximum continuous charge current | 150A |
| Maximum continuous discharge current | 150A | |
| Energy density | Gravimetric | 168Wh/kg |
| Volumetric | 346Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -20 ~ 55℃ | |
| Storage | -20 ~ 55℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 2500 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
