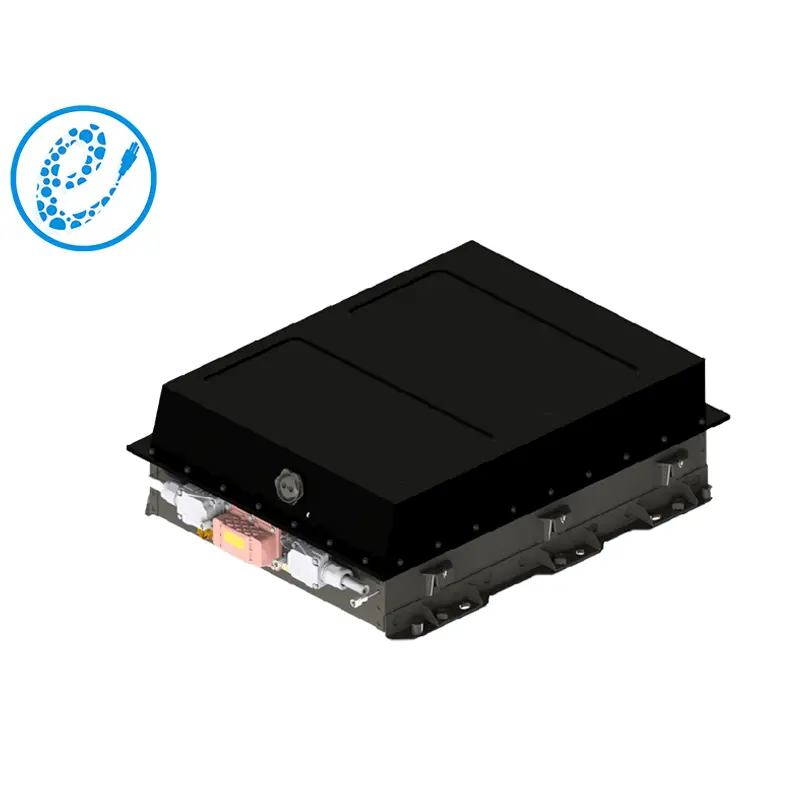

EcoPower PS050605-135.24V173A (173AH1P42S) The lithium power cell is designed using a rated voltage of 135.24V and a rated capacity of 173Ah, 1P42S. The batteries are also equipped with a comprehensive range of safety features including overcharge protection, over discharge protection, short circuit protection and temperature control. These features protect the battery and its surroundings from potential risks.
| No. | Items | EP-LFP 173Ah STADARD PACK | Note | |
| PS050605-135.24V173A | ||||
| 173AH1P42S | ||||
| 1 | Nominal voltage(V) | 135.24 | ||
| 2 | Operating voltage(V) | min | 105 | |
| 3 | max | 153.3 | ||
| 4 | Cell Configuration | 1P42S | ||
| 5 | Nominal energy（KWh ） | 23.4 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 173 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 173 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 173 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 805 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||
The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
