Robust lithium battery pack module delivering 314Ah capacity at 19.2V, configured in a 13-series arrangement.
| No. | Items | EP-LFP314Ah STANDARD MODULE | Note | |
| MS0302-41.6V314A | ||||
| 314AH1P13S | ||||
| 1 | Nominal voltage(V) | 41.6 | ||
| 2 | Operating voltage(V) | min | 32.5 | |
| 3 | max | 47.45 | ||
| 4 | Nominal capacity(Ah) | 314 | ||
| 5 | Nominal energy（KWh ） | 13.062 | ||
| 6 | Cell Configuration | 1P13S | ||
| 7 | Maximum continuous charge current（A） | 0.5P | ||
| 8 | Maximum continuous discharge current（A） | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |

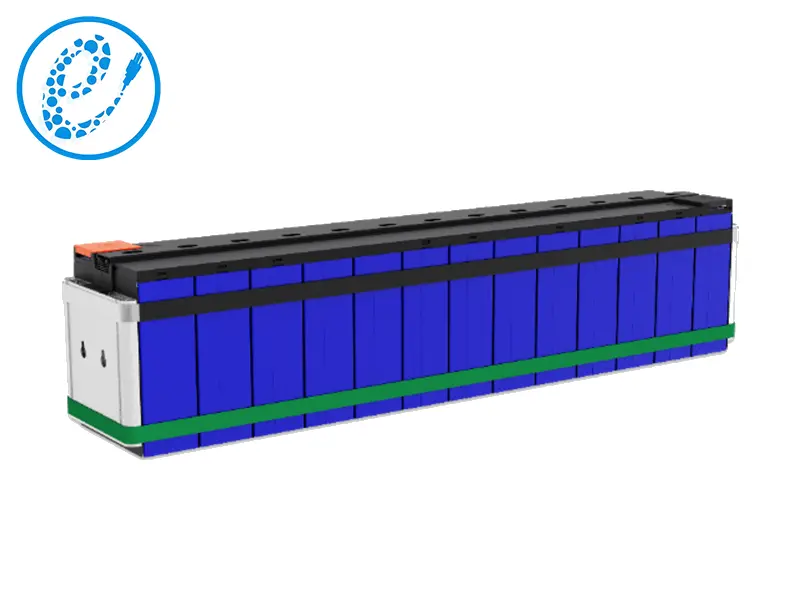

| 14 | Dimension （Aluminium Profile End Plate） | 979×176×227mm | L*B*H | |
| Dimension（Assembly End Plate） | 1004×176×227mm | |||
High integration
Adopting combined CCS integrated cover, integrated welding, automatic line one-piece moulding
High Energy Density
Adopting a new generation of self-developed 314Ah batteries, with significantly higher energy density.
High vibration
Through the overlap of the centre of gravity and force arm, vibration frequency consistency design, compression rib fastening, and strict CAE analysis, to ensure the vibration safety of transportation.
High Safety
Anti-interference (EMC) safety high and low voltage partition layout design.
