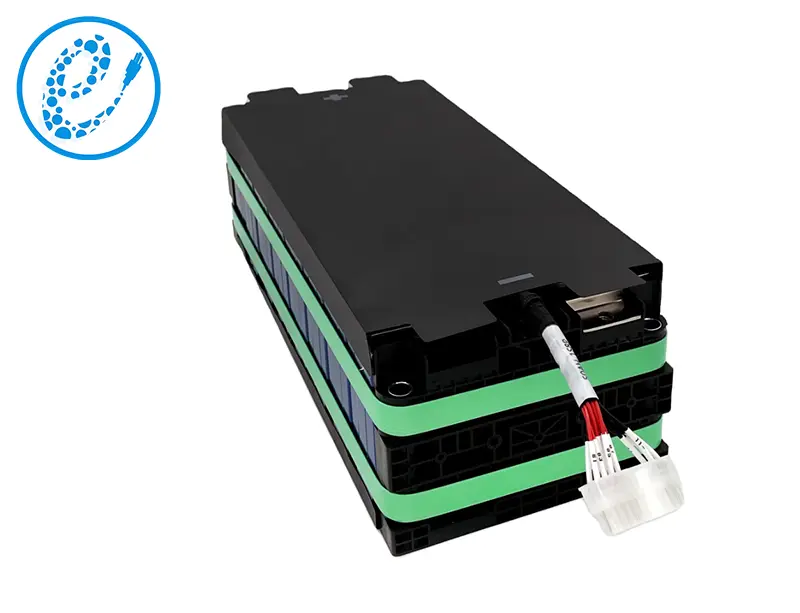

This MS0505-25.6V230A-(230AH 1P8S) battery pack module has a capacity of 230Ah and consists of 8 batteries connected in series at a nominal voltage of 25.6 V. It has a built-in BMS power management system that optimises energy distribution and improves efficiency and performance. Minimises energy loss and extends the overall life of the battery.
| No. | Items | EP-LFP230Ah STANDARD MODULE | Note | |
| MS0505-25.6V230A | ||||
| 230Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | 25℃，1C | |
| 2 | Operating voltage(V) | min | 16 | -30℃≤T≤0℃ |
| 20 | 0℃＜T≤55℃ | |||
| 3 | max | 29.2 | ||
| 4 | Nominal capacity(Ah) | 230 | 25℃，1C | |
| 5 | Nominal energy（KWh ） | 5.888 | 25℃，1C | |
| 6 | Cell Configuration | 1P8S | ||
| 7 | Maximum continuous charge current（A） | 230 | ||
| 8 | Maximum continuous discharge current（A） | 230 | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |

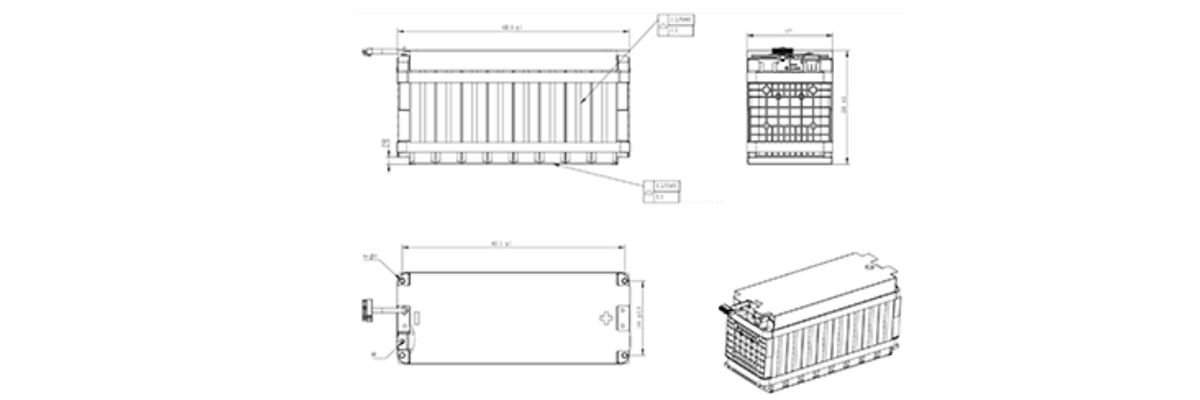

| 14 | Dimension L （mm） | 480.9 | ||
| Dimension B （mm） | 177 | |||
| Dimension H （mm） | 220 | |||
