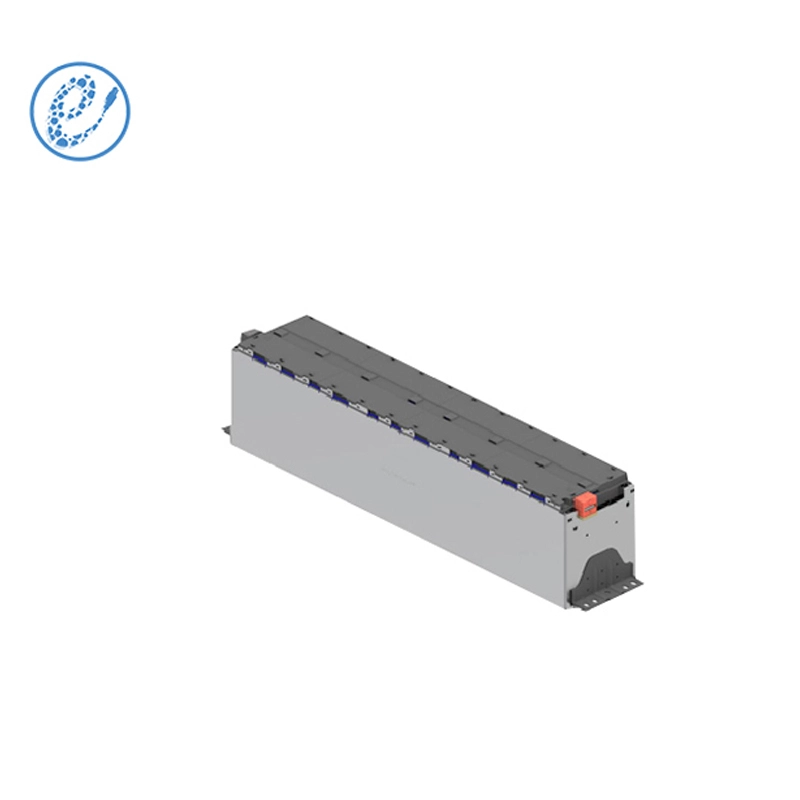

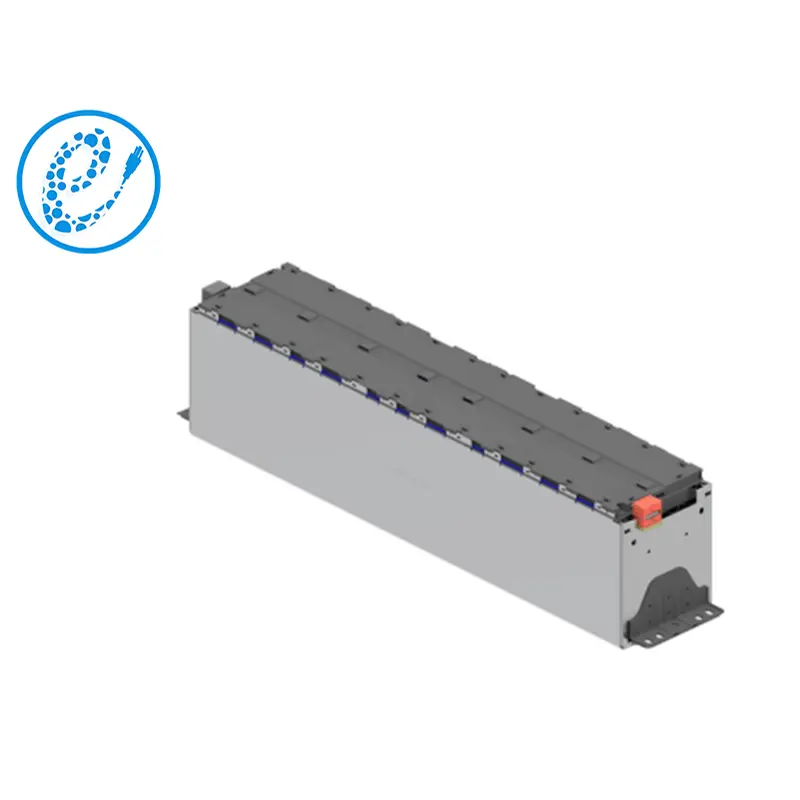

MS0202-48.3V228A-(228AH1P15S) Li-ion battery charging module has a capacity of 228Ah and a rated voltage of 48.3 V. Whether it's applied to electric vehicles or industrial and commercial energy storage, this module is your preferred choice.
| Items | EP-LFP228Ah STANDARD MODULE | Note | |
| MS0202-48.3V228A | |||
| 228Ah1P15S | |||
| Nominal voltage(V) | 48.3 | ||
| Operating voltage(v) | min | 37.5 | T＞0%℃ |
| max | 54.75 | ||
| Nominal capacity (Ah) | 228 | 1/3C, 100%DOD | |
| Nominal energy (KWh) | 11.012 | 1/3C, 100%DOD | |
| Cell Configuration | 1P15S | ||
| End of life residual capacity (Ah) | 182.4 | ||
| Module weight (Kg) | 63.5 | ||
| Maximum continuous charge current (A) | 228 | ||
| Maximum continuous discharge current (A) | 228 | ||
| Maximum pulse discharge current (≤30s)(A) | 456 | ||
| SOC operating range (%) | 10~90 | ||
| Insulation requirements(MΩ) | ≥20 | ||
| Module cooling method | Natural cooling | ||
| Module heating method | No | Or heating film | |
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L (mm) | 911 | ||
| Dimension B (mm) | 178.6 | ||
| Dimension H (mm) | 223.4 | ||
